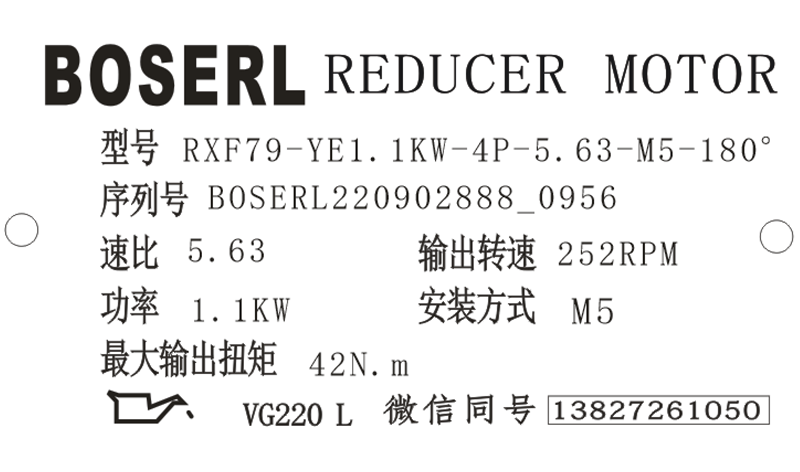

RXF79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RXF79減速機選型樣本。

RXF79-YE1.1KW-4P-5.63-M5-180°

RXF：系列代號

79：減速機規格代號

YE：電機

1.1KW：電機功率

4P：電機級數

5.63：減速機傳動比

M5：減速機安裝位置

180°：接線盒位置

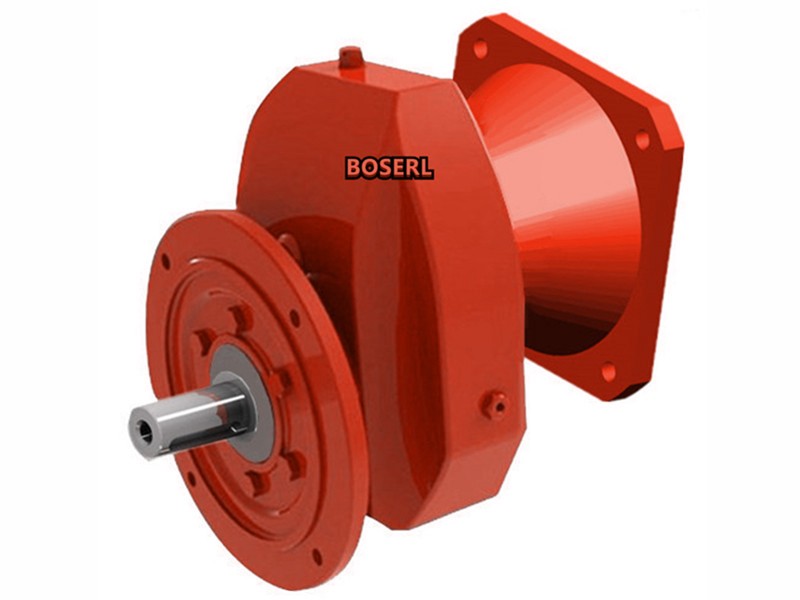

RXF79減速機AD軸入模塊配置：

RXF79減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當?shù)竭_(dá)最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。齒輪減速電機

RXF79減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

RXF79減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。

RXF79減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，F(xiàn)qmax不增加；聯軸器輸出法蘭盤直徑：160mm。立式減速機

RXF79減速機維護檢查：

RXF79減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。硬齒面減速機

RXF79減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的RXF79減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

RXF79減速機潤滑油更換周期：下圖為在一般條件下標準RXF79減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。

RXF79減速機型號：

JCRXF77-AM100M4，JCRXF77-AM112M4，JCRXF77-AM132M4，JCRXF77-AM160M4，JCRXF77-AM71M4，JCRXF77-AM80M4，JCRXF77-AM90M4，JCRXF77-Y0.18KW，JCRXF77-Y0.25KW，JCRXF77-Y0.37KW，JCRXF77-Y0.55KW，JCRXF77-Y0.75KW，JCRXF77-Y1.1KW，JCRXF77-Y1.5KW，JCRXF77-Y100M4，JCRXF77-Y112M4，JCRXF77-Y11KW，JCRXF77-Y132M4，JCRXF77-Y15KW，JCRXF77-Y160M4，JCRXF77-Y2.2KW，JCRXF77-Y3KW，JCRXF77-Y4KW，JCRXF77-Y5.5KW，JCRXF77-Y7.5KW，JCRXF77-Y71M4，JCRXF77-Y80M4，JCRXF77-Y90M4，JCRXF77-YB100M4，JCRXF77-YB112M4，JCRXF77-YB132M4，JCRXF77-YB160M4，JCRXF77-YB71M4，JCRXF77-YB80M4，JCRXF77-YB90M4，JCRXF77-YDP100M4，JCRXF77-YDP112M4，JCRXF77-YDP132M4，JCRXF77-YDP160M4，JCRXF77-YDP71M4，JCRXF77-YDP80M4，JCRXF77-YDP90M4，JCRXF77-YE100M4，JCRXF77-YE112M4，JCRXF77-YE132M4，JCRXF77-YE160M4，JCRXF77-YE71M4，JCRXF77-YE80M4，JCRXF77-YE90M4，JCRXF77-YEJ100M4，JCRXF77-YEJ112M4，JCRXF77-YEJ132M4，JCRXF77-YEJ160M4，JCRXF77-YEJ71M4，JCRXF77-YEJ80M4，JCRXF77-YEJ90M4，JCRXF77-YEJB100M4，JCRXF77-YEJB112M4，JCRXF77-YEJB132M4，JCRXF77-YEJB160M4，JCRXF77-YEJB71M4，JCRXF77-YEJB80M4，JCRXF77-YEJB90M4，JCRXF77-YP100M4，JCRXF77-YP112M4，JCRXF77-YP132M4，JCRXF77-YP160M4，JCRXF77-YP71M4，JCRXF77-YP80M4，JCRXF77-YP90M4，JCRXF77-YPB100M4，JCRXF77-YPB112M4，JCRXF77-YPB132M4，JCRXF77-YPB160M4，JCRXF77-YPB71M4，JCRXF77-YPB80M4，JCRXF77-YPB90M4，JCRXF77-YPE100M4，JCRXF77-YPE112M4，JCRXF77-YPE132M4，JCRXF77-YPE160M4，JCRXF77-YPE71M4，JCRXF77-YPE80M4，JCRXF77-YPE90M4，JCRXF77-YS100M4，JCRXF77-YS112M4，JCRXF77-YS132M4，JCRXF77-YS160M4，JCRXF77-YS71M4，JCRXF77-YS80M4，JCRXF77-YS90M4，JCRXF77-YVB100M4，JCRXF77-YVB112M4，JCRXF77-YVB132M4，JCRXF77-YVB160M4，JCRXF77-YVB71M4，JCRXF77-YVB80M4，JCRXF77-YVB90M4，JCRXF77-YVP100M4，JCRXF77-YVP112M4，JCRXF77-YVP132M4，JCRXF77-YVP160M4，JCRXF77-YVP71M4，JCRXF77-YVP80M4，JCRXF77-YVP90M4，JCRXF77-YVPEJ100M4，JCRXF77-YVPEJ112M4，JCRXF77-YVPEJ132M4，JCRXF77-YVPEJ160M4，JCRXF77-YVPEJ71M4，JCRXF77-YVPEJ80M4，JCRXF77-YVPEJ90M4，XDRXF77-AM100M4，XDRXF77-AM112M4，XDRXF77-AM132M4，XDRXF77-AM160M4，XDRXF77-AM71M4，XDRXF77-AM80M4，XDRXF77-AM90M4，XDRXF77-Y0.18KW，XDRXF77-Y0.25KW，XDRXF77-Y0.37KW，XDRXF77-Y0.55KW，XDRXF77-Y0.75KW，XDRXF77-Y1.1KW，XDRXF77-Y1.5KW，XDRXF77-Y100M4，XDRXF77-Y112M4，XDRXF77-Y11KW，XDRXF77-Y132M4，XDRXF77-Y15KW，XDRXF77-Y160M4，XDRXF77-Y2.2KW，XDRXF77-Y3KW，XDRXF77-Y4KW，XDRXF77-Y5.5KW，XDRXF77-Y7.5KW，XDRXF77-Y71M4，XDRXF77-Y80M4，XDRXF77-Y90M4，XDRXF77-YB100M4，XDRXF77-YB112M4，XDRXF77-YB132M4，XDRXF77-YB160M4，XDRXF77-YB71M4，XDRXF77-YB80M4，XDRXF77-YB90M4，XDRXF77-YDP100M4，XDRXF77-YDP112M4，XDRXF77-YDP132M4，XDRXF77-YDP160M4，XDRXF77-YDP71M4，XDRXF77-YDP80M4，XDRXF77-YDP90M4，XDRXF77-YE100M4，XDRXF77-YE112M4，XDRXF77-YE132M4，XDRXF77-YE160M4，XDRXF77-YE71M4，XDRXF77-YE80M4，XDRXF77-YE90M4，XDRXF77-YEJ100M4，XDRXF77-YEJ112M4，XDRXF77-YEJ132M4，XDRXF77-YEJ160M4，XDRXF77-YEJ71M4，XDRXF77-YEJ80M4，XDRXF77-YEJ90M4，XDRXF77-YEJB100M4，XDRXF77-YEJB112M4，XDRXF77-YEJB132M4，XDRXF77-YEJB160M4，XDRXF77-YEJB71M4，XDRXF77-YEJB80M4，XDRXF77-YEJB90M4，XDRXF77-YP100M4，XDRXF77-YP112M4，XDRXF77-YP132M4，XDRXF77-YP160M4，XDRXF77-YP71M4，XDRXF77-YP80M4，XDRXF77-YP90M4，XDRXF77-YPB100M4，XDRXF77-YPB112M4，XDRXF77-YPB132M4，XDRXF77-YPB160M4，XDRXF77-YPB71M4，XDRXF77-YPB80M4，XDRXF77-YPB90M4，XDRXF77-YPE100M4，XDRXF77-YPE112M4，XDRXF77-YPE132M4，XDRXF77-YPE160M4，XDRXF77-YPE71M4，XDRXF77-YPE80M4，XDRXF77-YPE90M4，XDRXF77-YS100M4，XDRXF77-YS112M4，XDRXF77-YS132M4，XDRXF77-YS160M4，XDRXF77-YS71M4，XDRXF77-YS80M4，XDRXF77-YS90M4，XDRXF77-YVB100M4，XDRXF77-YVB112M4，XDRXF77-YVB132M4，XDRXF77-YVB160M4，XDRXF77-YVB71M4，XDRXF77-YVB80M4，XDRXF77-YVB90M4，XDRXF77-YVP100M4，XDRXF77-YVP112M4，XDRXF77-YVP132M4，XDRXF77-YVP160M4，XDRXF77-YVP71M4，XDRXF77-YVP80M4，XDRXF77-YVP90M4，XDRXF77-YVPEJ100M4，XDRXF77-YVPEJ112M4，XDRXF77-YVPEJ132M4，XDRXF77-YVPEJ160M4，XDRXF77-YVPEJ71M4，XDRXF77-YVPEJ80M4，XDRXF77-YVPEJ90M4，RXF79-AM100M4，RXF79-AM112M4，RXF79-AM132M4，RXF79-AM160M4，RXF79-AM71M4，RXF79-AM80M4，RXF79-AM90M4，RXF79-Y0.18KW，RXF79-Y0.25KW，RXF79-Y0.37KW，RXF79-Y0.55KW，RXF79-Y0.75KW，RXF79-Y1.1KW，RXF79-Y1.5KW，RXF79-Y100M4，RXF79-Y112M4，RXF79-Y11KW，RXF79-Y132M4，RXF79-Y15KW，RXF79-Y160M4，RXF79-Y2.2KW，RXF79-Y3KW，RXF79-Y4KW，RXF79-Y5.5KW，RXF79-Y7.5KW，RXF79-Y71M4，RXF79-Y80M4，RXF79-Y90M4，RXF79-YB100M4，RXF79-YB112M4，RXF79-YB132M4，RXF79-YB160M4，RXF79-YB71M4，RXF79-YB80M4，RXF79-YB90M4，RXF79-YDP100M4，RXF79-YDP112M4，RXF79-YDP132M4，RXF79-YDP160M4，RXF79-YDP71M4，RXF79-YDP80M4，RXF79-YDP90M4，RXF79-YE100M4，RXF79-YE112M4，RXF79-YE132M4，RXF79-YE160M4，RXF79-YE71M4，RXF79-YE80M4，RXF79-YE90M4，RXF79-YEJ100M4，RXF79-YEJ112M4，RXF79-YEJ132M4，RXF79-YEJ160M4，RXF79-YEJ71M4，RXF79-YEJ80M4，RXF79-YEJ90M4，RXF79-YEJB100M4，RXF79-YEJB112M4，RXF79-YEJB132M4，RXF79-YEJB160M4，RXF79-YEJB71M4，RXF79-YEJB80M4，RXF79-YEJB90M4，RXF79-YP100M4，RXF79-YP112M4，RXF79-YP132M4，RXF79-YP160M4，RXF79-YP71M4，RXF79-YP80M4，RXF79-YP90M4，RXF79-YPB100M4，RXF79-YPB112M4，RXF79-YPB132M4，RXF79-YPB160M4，RXF79-YPB71M4，RXF79-YPB80M4，RXF79-YPB90M4，RXF79-YPE100M4，RXF79-YPE112M4，RXF79-YPE132M4，RXF79-YPE160M4，RXF79-YPE71M4，RXF79-YPE80M4，RXF79-YPE90M4，RXF79-YS100M4，RXF79-YS112M4，RXF79-YS132M4，RXF79-YS160M4，RXF79-YS71M4，RXF79-YS80M4，RXF79-YS90M4，RXF79-YVB100M4，RXF79-YVB112M4，RXF79-YVB132M4，RXF79-YVB160M4，RXF79-YVB71M4，RXF79-YVB80M4，RXF79-YVB90M4，RXF79-YVP100M4，RXF79-YVP112M4，RXF79-YVP132M4，RXF79-YVP160M4，RXF79-YVP71M4，RXF79-YVP80M4，RXF79-YVP90M4，RXF79-YVPEJ100M4，RXF79-YVPEJ112M4，RXF79-YVPEJ132M4，RXF79-YVPEJ160M4，RXF79-YVPEJ71M4，RXF79-YVPEJ80M4，RXF79-YVPEJ90M4，RWXF77-AM100M4，RWXF77-AM112M4，RWXF77-AM132M4，RWXF77-AM160M4，RWXF77-AM71M4，RWXF77-AM80M4，RWXF77-AM90M4，RWXF77-Y0.18KW，RWXF77-Y0.25KW，RWXF77-Y0.37KW，RWXF77-Y0.55KW，RWXF77-Y0.75KW，RWXF77-Y1.1KW，RWXF77-Y1.5KW，RWXF77-Y100M4，RWXF77-Y112M4，RWXF77-Y11KW，RWXF77-Y132M4，RWXF77-Y15KW，RWXF77-Y160M4，RWXF77-Y2.2KW，RWXF77-Y3KW，RWXF77-Y4KW，RWXF77-Y5.5KW，RWXF77-Y7.5KW，RWXF77-Y71M4，RWXF77-Y80M4，RWXF77-Y90M4，RWXF77-YB100M4，RWXF77-YB112M4，RWXF77-YB132M4，RWXF77-YB160M4，RWXF77-YB71M4，RWXF77-YB80M4，RWXF77-YB90M4，RWXF77-YDP100M4，RWXF77-YDP112M4，RWXF77-YDP132M4，RWXF77-YDP160M4，RWXF77-YDP71M4，RWXF77-YDP80M4，RWXF77-YDP90M4，RWXF77-YE100M4，RWXF77-YE112M4，RWXF77-YE132M4，RWXF77-YE160M4，RWXF77-YE71M4，RWXF77-YE80M4，RWXF77-YE90M4，RWXF77-YEJ100M4，RWXF77-YEJ112M4，RWXF77-YEJ132M4，RWXF77-YEJ160M4，RWXF77-YEJ71M4，RWXF77-YEJ80M4，RWXF77-YEJ90M4，RWXF77-YEJB100M4，RWXF77-YEJB112M4，RWXF77-YEJB132M4，RWXF77-YEJB160M4，RWXF77-YEJB71M4，RWXF77-YEJB80M4，RWXF77-YEJB90M4，RWXF77-YP100M4，RWXF77-YP112M4，RWXF77-YP132M4，RWXF77-YP160M4，RWXF77-YP71M4，RWXF77-YP80M4，RWXF77-YP90M4，RWXF77-YPB100M4，RWXF77-YPB112M4，RWXF77-YPB132M4，RWXF77-YPB160M4，RWXF77-YPB71M4，RWXF77-YPB80M4，RWXF77-YPB90M4，RWXF77-YPE100M4，RWXF77-YPE112M4，RWXF77-YPE132M4，RWXF77-YPE160M4，RWXF77-YPE71M4，RWXF77-YPE80M4，RWXF77-YPE90M4，RWXF77-YS100M4，RWXF77-YS112M4，RWXF77-YS132M4，RWXF77-YS160M4，RWXF77-YS71M4，RWXF77-YS80M4，RWXF77-YS90M4，RWXF77-YVB100M4，RWXF77-YVB112M4，RWXF77-YVB132M4，RWXF77-YVB160M4，RWXF77-YVB71M4，RWXF77-YVB80M4，RWXF77-YVB90M4，RWXF77-YVP100M4，RWXF77-YVP112M4，RWXF77-YVP132M4，RWXF77-YVP160M4，RWXF77-YVP71M4，RWXF77-YVP80M4，RWXF77-YVP90M4，RWXF77-YVPEJ100M4，RWXF77-YVPEJ112M4，RWXF77-YVPEJ132M4，RWXF77-YVPEJ160M4，RWXF77-YVPEJ71M4，RWXF77-YVPEJ80M4，RWXF77-YVPEJ90M4，YQRXF77-AM100M4，YQRXF77-AM112M4，YQRXF77-AM132M4，YQRXF77-AM160M4，YQRXF77-AM71M4，YQRXF77-AM80M4，YQRXF77-AM90M4，YQRXF77-Y0.18KW，YQRXF77-Y0.25KW，YQRXF77-Y0.37KW，YQRXF77-Y0.55KW，YQRXF77-Y0.75KW，YQRXF77-Y1.1KW，YQRXF77-Y1.5KW，YQRXF77-Y100M4，YQRXF77-Y112M4，YQRXF77-Y11KW，YQRXF77-Y132M4，YQRXF77-Y15KW，YQRXF77-Y160M4，YQRXF77-Y2.2KW，YQRXF77-Y3KW，YQRXF77-Y4KW，YQRXF77-Y5.5KW，YQRXF77-Y7.5KW，YQRXF77-Y71M4，YQRXF77-Y80M4，YQRXF77-Y90M4，YQRXF77-YB100M4，YQRXF77-YB112M4，YQRXF77-YB132M4，YQRXF77-YB160M4，YQRXF77-YB71M4，YQRXF77-YB80M4，YQRXF77-YB90M4，YQRXF77-YDP100M4，YQRXF77-YDP112M4，YQRXF77-YDP132M4，YQRXF77-YDP160M4，YQRXF77-YDP71M4，YQRXF77-YDP80M4，YQRXF77-YDP90M4，YQRXF77-YE100M4，YQRXF77-YE112M4，YQRXF77-YE132M4，YQRXF77-YE160M4，YQRXF77-YE71M4，YQRXF77-YE80M4，YQRXF77-YE90M4，YQRXF77-YEJ100M4，YQRXF77-YEJ112M4，YQRXF77-YEJ132M4，YQRXF77-YEJ160M4，YQRXF77-YEJ71M4，YQRXF77-YEJ80M4，YQRXF77-YEJ90M4，YQRXF77-YEJB100M4，YQRXF77-YEJB112M4，YQRXF77-YEJB132M4，YQRXF77-YEJB160M4，YQRXF77-YEJB71M4，YQRXF77-YEJB80M4，YQRXF77-YEJB90M4，YQRXF77-YP100M4，YQRXF77-YP112M4，YQRXF77-YP132M4，YQRXF77-YP160M4，YQRXF77-YP71M4，YQRXF77-YP80M4，YQRXF77-YP90M4，YQRXF77-YPB100M4，YQRXF77-YPB112M4，YQRXF77-YPB132M4，YQRXF77-YPB160M4，YQRXF77-YPB71M4，YQRXF77-YPB80M4，YQRXF77-YPB90M4，YQRXF77-YPE100M4，YQRXF77-YPE112M4，YQRXF77-YPE132M4，YQRXF77-YPE160M4，YQRXF77-YPE71M4，YQRXF77-YPE80M4，YQRXF77-YPE90M4，YQRXF77-YS100M4，YQRXF77-YS112M4，YQRXF77-YS132M4，YQRXF77-YS160M4，YQRXF77-YS71M4，YQRXF77-YS80M4，YQRXF77-YS90M4，YQRXF77-YVB100M4，YQRXF77-YVB112M4，YQRXF77-YVB132M4，YQRXF77-YVB160M4，YQRXF77-YVB71M4，YQRXF77-YVB80M4，YQRXF77-YVB90M4，YQRXF77-YVP100M4，YQRXF77-YVP112M4，YQRXF77-YVP132M4，YQRXF77-YVP160M4，YQRXF77-YVP71M4，YQRXF77-YVP80M4，YQRXF77-YVP90M4，YQRXF77-YVPEJ100M4，YQRXF77-YVPEJ112M4，YQRXF77-YVPEJ132M4，YQRXF77-YVPEJ160M4，YQRXF77-YVPEJ71M4，YQRXF77-YVPEJ80M4，YQRXF77-YVPEJ90M4。
