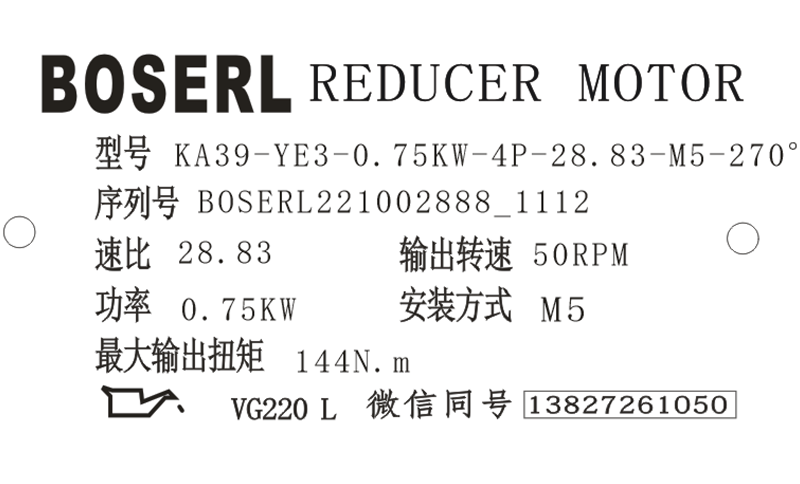

KA39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA39減速機選型樣本。

KA39-YE3-0.75KW-4P-28.83-M5-270°

KA：系列代號

39：減速機規格代號

YE3：電機

0.75KW：電機功率

4P：電機級數

28.83：減速機傳動比

M5：減速機安裝位置

270°：接線盒位置

KA39減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA39減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA39減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA39減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA39減速機型號：

AKA37-Y0.12SKA，AKA37-Y0.18SKA，AKA37-Y0.25SKA，AKA37-Y0.37SKA，AKA37-Y0.55SKA，AKA37-Y0.75SKA，AKA37-Y1.1SKA，AKA37-Y1.5SKA，AKA37-Y100M4，AKA37-Y2.2SKA，AKA37-Y3SKA，AKA37-Y63M4，AKA37-Y71M4，AKA37-Y80M4，AKA37-Y90M4，AKA37-YB100M4，AKA37-YB63M4，AKA37-YB71M4，AKA37-YB80M4，AKA37-YB90M4，AKA37-YDP100M4，AKA37-YDP63M4，AKA37-YDP71M4，AKA37-YDP80M4，AKA37-YDP90M4，AKA37-YE100M4，AKA37-YE63M4，AKA37-YE71M4，AKA37-YE80M4，AKA37-YE90M4，AKA37-YEJ100M4，AKA37-YEJ63M4，AKA37-YEJ71M4，AKA37-YEJ80M4，AKA37-YEJ90M4，AKA37-YEJB100M4，AKA37-YEJB63M4，AKA37-YEJB71M4，AKA37-YEJB80M4，AKA37-YEJB90M4，AKA37-YP100M4，AKA37-YP63M4，AKA37-YP71M4，AKA37-YP80M4，AKA37-YP90M4，AKA37-YPB100M4，AKA37-YPB63M4，AKA37-YPB71M4，AKA37-YPB80M4，AKA37-YPB90M4，AKA37-YPE100M4，AKA37-YPE63M4，AKA37-YPE71M4，AKA37-YPE80M4，AKA37-YPE90M4，AKA37-YS100M4，AKA37-YS63M4，AKA37-YS71M4，AKA37-YS80M4，AKA37-YS90M4，AKA37-YVB100M4，AKA37-YVB63M4，AKA37-YVB71M4，AKA37-YVB80M4，AKA37-YVB90M4，AKA37-YVP100M4，AKA37-YVP63M4，AKA37-YVP71M4，AKA37-YVP80M4，AKA37-YVP90M4，AKA37-YVPEJ100M4，AKA37-YVPEJ63M4，AKA37-YVPEJ71M4，AKA37-YVPEJ80M4，AKA37-YVPEJ90M4，WKA37-Y0.12SKA，WKA37-Y0.18SKA，WKA37-Y0.25SKA，WKA37-Y0.37SKA，WKA37-Y0.55SKA，WKA37-Y0.75SKA，WKA37-Y1.1SKA，WKA37-Y1.5SKA，WKA37-Y100M4，WKA37-Y2.2SKA，WKA37-Y3SKA，WKA37-Y63M4，WKA37-Y71M4，WKA37-Y80M4，WKA37-Y90M4，WKA37-YB100M4，WKA37-YB63M4，WKA37-YB71M4，WKA37-YB80M4，WKA37-YB90M4，WKA37-YDP100M4，WKA37-YDP63M4，WKA37-YDP71M4，WKA37-YDP80M4，WKA37-YDP90M4，WKA37-YE100M4，WKA37-YE63M4，WKA37-YE71M4，WKA37-YE80M4，WKA37-YE90M4，WKA37-YEJ100M4，WKA37-YEJ63M4，WKA37-YEJ71M4，WKA37-YEJ80M4，WKA37-YEJ90M4，WKA37-YEJB100M4，WKA37-YEJB63M4，WKA37-YEJB71M4，WKA37-YEJB80M4，WKA37-YEJB90M4，WKA37-YP100M4，WKA37-YP63M4，WKA37-YP71M4，WKA37-YP80M4，WKA37-YP90M4，WKA37-YPB100M4，WKA37-YPB63M4，WKA37-YPB71M4，WKA37-YPB80M4，WKA37-YPB90M4，WKA37-YPE100M4，WKA37-YPE63M4，WKA37-YPE71M4，WKA37-YPE80M4，WKA37-YPE90M4，WKA37-YS100M4，WKA37-YS63M4，WKA37-YS71M4，WKA37-YS80M4，WKA37-YS90M4，WKA37-YVB100M4，WKA37-YVB63M4，WKA37-YVB71M4，WKA37-YVB80M4，WKA37-YVB90M4，WKA37-YVP100M4，WKA37-YVP63M4，WKA37-YVP71M4，WKA37-YVP80M4，WKA37-YVP90M4，WKA37-YVPEJ100M4，WKA37-YVPEJ63M4，WKA37-YVPEJ71M4，WKA37-YVPEJ80M4，WKA37-YVPEJ90M4，NKA37-Y0.12SKA，NKA37-Y0.18SKA，NKA37-Y0.25SKA，NKA37-Y0.37SKA，NKA37-Y0.55SKA，NKA37-Y0.75SKA，NKA37-Y1.1SKA，NKA37-Y1.5SKA，NKA37-Y100M4，NKA37-Y2.2SKA，NKA37-Y3SKA，NKA37-Y63M4，NKA37-Y71M4，NKA37-Y80M4，NKA37-Y90M4，NKA37-YB100M4，NKA37-YB63M4，NKA37-YB71M4，NKA37-YB80M4，NKA37-YB90M4，NKA37-YDP100M4，NKA37-YDP63M4，NKA37-YDP71M4，NKA37-YDP80M4，NKA37-YDP90M4，NKA37-YE100M4，NKA37-YE63M4，NKA37-YE71M4，NKA37-YE80M4，NKA37-YE90M4，NKA37-YEJ100M4，NKA37-YEJ63M4，NKA37-YEJ71M4，NKA37-YEJ80M4，NKA37-YEJ90M4，NKA37-YEJB100M4，NKA37-YEJB63M4，NKA37-YEJB71M4，NKA37-YEJB80M4，NKA37-YEJB90M4，NKA37-YP100M4，NKA37-YP63M4，NKA37-YP71M4，NKA37-YP80M4，NKA37-YP90M4，NKA37-YPB100M4，NKA37-YPB63M4，NKA37-YPB71M4，NKA37-YPB80M4，NKA37-YPB90M4，NKA37-YPE100M4，NKA37-YPE63M4，NKA37-YPE71M4，NKA37-YPE80M4，NKA37-YPE90M4，NKA37-YS100M4，NKA37-YS63M4，NKA37-YS71M4，NKA37-YS80M4，NKA37-YS90M4，NKA37-YVB100M4，NKA37-YVB63M4，NKA37-YVB71M4，NKA37-YVB80M4，NKA37-YVB90M4，NKA37-YVP100M4，NKA37-YVP63M4，NKA37-YVP71M4，NKA37-YVP80M4，NKA37-YVP90M4，NKA37-YVPEJ100M4，NKA37-YVPEJ63M4，NKA37-YVPEJ71M4，NKA37-YVPEJ80M4，NKA37-YVPEJ90M4，SKA37-Y0.12SKA，SKA37-Y0.18SKA，SKA37-Y0.25SKA，SKA37-Y0.37SKA，SKA37-Y0.55SKA，SKA37-Y0.75SKA，SKA37-Y1.1SKA，SKA37-Y1.5SKA，SKA37-Y100M4，SKA37-Y2.2SKA，SKA37-Y3SKA，SKA37-Y63M4，SKA37-Y71M4，SKA37-Y80M4，SKA37-Y90M4，SKA37-YB100M4，SKA37-YB63M4，SKA37-YB71M4，SKA37-YB80M4，SKA37-YB90M4，SKA37-YDP100M4，SKA37-YDP63M4，SKA37-YDP71M4，SKA37-YDP80M4，SKA37-YDP90M4，SKA37-YE100M4，SKA37-YE63M4，SKA37-YE71M4，SKA37-YE80M4，SKA37-YE90M4，SKA37-YEJ100M4，SKA37-YEJ63M4，SKA37-YEJ71M4，SKA37-YEJ80M4，SKA37-YEJ90M4，SKA37-YEJB100M4，SKA37-YEJB63M4，SKA37-YEJB71M4，SKA37-YEJB80M4，SKA37-YEJB90M4，SKA37-YP100M4，SKA37-YP63M4，SKA37-YP71M4，SKA37-YP80M4，SKA37-YP90M4，SKA37-YPB100M4，SKA37-YPB63M4，SKA37-YPB71M4，SKA37-YPB80M4，SKA37-YPB90M4，SKA37-YPE100M4，SKA37-YPE63M4，SKA37-YPE71M4，SKA37-YPE80M4，SKA37-YPE90M4，SKA37-YS100M4，SKA37-YS63M4，SKA37-YS71M4，SKA37-YS80M4，SKA37-YS90M4，SKA37-YVB100M4，SKA37-YVB63M4，SKA37-YVB71M4，SKA37-YVB80M4，SKA37-YVB90M4，SKA37-YVP100M4，SKA37-YVP63M4，SKA37-YVP71M4，SKA37-YVP80M4，SKA37-YVP90M4，SKA37-YVPEJ100M4，SKA37-YVPEJ63M4，SKA37-YVPEJ71M4，SKA37-YVPEJ80M4，SKA37-YVPEJ90M4，GKA39-Y0.12SKA，GKA39-Y0.18SKA，GKA39-Y0.25SKA，GKA39-Y0.37SKA，GKA39-Y0.55SKA，GKA39-Y0.75SKA，GKA39-Y1.1SKA，GKA39-Y1.5SKA，GKA39-Y100M4，GKA39-Y2.2SKA，GKA39-Y3SKA，GKA39-Y63M4，GKA39-Y71M4，GKA39-Y80M4，GKA39-Y90M4，GKA39-YB100M4，GKA39-YB63M4，GKA39-YB71M4，GKA39-YB80M4，GKA39-YB90M4，GKA39-YDP100M4，GKA39-YDP63M4，GKA39-YDP71M4，GKA39-YDP80M4，GKA39-YDP90M4，GKA39-YE100M4，GKA39-YE63M4，GKA39-YE71M4，GKA39-YE80M4，GKA39-YE90M4，GKA39-YEJ100M4，GKA39-YEJ63M4，GKA39-YEJ71M4，GKA39-YEJ80M4，GKA39-YEJ90M4，GKA39-YEJB100M4，GKA39-YEJB63M4，GKA39-YEJB71M4，GKA39-YEJB80M4，GKA39-YEJB90M4，GKA39-YP100M4，GKA39-YP63M4，GKA39-YP71M4，GKA39-YP80M4，GKA39-YP90M4，GKA39-YPB100M4，GKA39-YPB63M4，GKA39-YPB71M4，GKA39-YPB80M4，GKA39-YPB90M4，GKA39-YPE100M4，GKA39-YPE63M4，GKA39-YPE71M4，GKA39-YPE80M4，GKA39-YPE90M4，GKA39-YS100M4，GKA39-YS63M4，GKA39-YS71M4，GKA39-YS80M4，GKA39-YS90M4，GKA39-YVB100M4，GKA39-YVB63M4，GKA39-YVB71M4，GKA39-YVB80M4，GKA39-YVB90M4，GKA39-YVP100M4，GKA39-YVP63M4，GKA39-YVP71M4，GKA39-YVP80M4，GKA39-YVP90M4，GKA39-YVPEJ100M4，GKA39-YVPEJ63M4，GKA39-YVPEJ71M4，GKA39-YVPEJ80M4，GKA39-YVPEJ90M4。

KA39減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.csfzfl.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K39減速機
