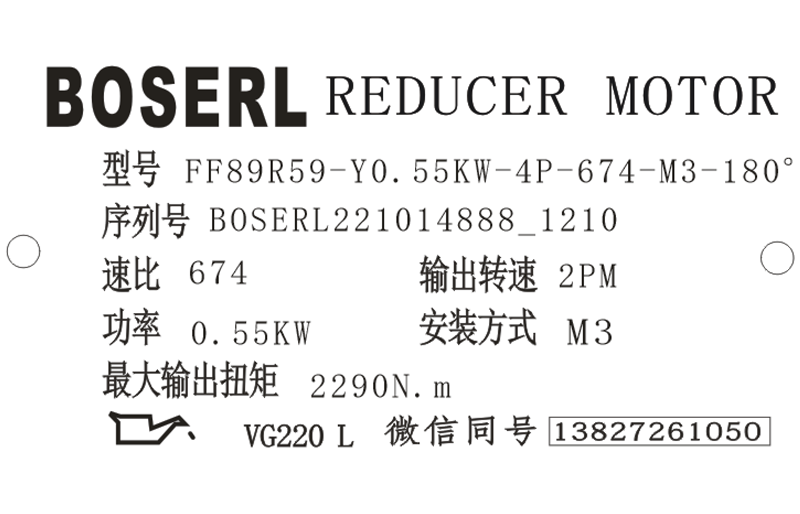

FF89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF89R59減速機選型樣本。

FF89R59-Y0.55KW-4P-674-M3-180°

FF/R：系列代號

89/59：減速機規格代號

Y：電機

0.55KW：電機功率

4P：電機級數

674：減速機傳動比

M3：減速機安裝位置

180°：接線盒位置

FF89R59減速機電機操作注意事項

請在安裝使用電機前，仔細閱讀我司說明書，請遵照本說明書的指示，安全、正確地安裝、操作和維護電機。所有對電機或輔助設備進行安裝、操作或維護的人員必須注意，不按照本說明書指示操作，可能出現產品損壞及人身安全事故。剎車電機減速機

請按照接線圖確實地進行接線，否則有可能引起火災或觸電。請勿強行彎曲、扯拉或夾住導線，否則有可能引起火災或觸電。

停電時，請切斷電源，否則回復供電后電動機會突然啟動，有可能致傷或造成設備破損。

減速電機請勿在銘牌或制造規格書中的規格值范圍外使用。否則有可能會導致觸電、受傷、損壞裝置等情況。

請勿將手指或物品插入減速電機的開口部分。否則有可能會導致觸電、受傷、火災、損壞裝置等情況。

運轉時請勿碰觸旋轉部(出力軸、散熱風扇)，否則有可能致傷。請勿使用損壞的減速電機，否則有可能會導致受傷、火災等情況。請勿拆下銘牌。

請勿對電機進行拆解或改造，否則有可能引起觸電或致傷。客戶對產品的改造不屬于本公司的保證范圍，本公司將不承擔責任。平行軸斜齒輪減速機

FF89R59減速機電機質量標準：

執行標準：GB755-2008，GB12350-2009，GB14711-2013。備注：BOSERL常規產品型號在設計時，按電動機功率及允許承載能力的強度計算;按照每天連續運轉八小時，載荷穩定不變的理想工況設定在實際使用時，現場工況(如:是否有反復啟動停止或頻繁正反轉，使用時間是否少于或多于八小時，沖擊載荷大小及特性)可能與理想工況相差甚遠，在選型時應予充分考慮;若有其它特殊要求，請反饋我司，將重新設計以滿足需求。齒輪減速電機

FF89R59減速電機型號：

YQFF87R57-Y0.12KW，YQFF87R57-Y0.18KW，YQFF87R57-Y0.25KW，YQFF87R57-Y0.37KW，YQFF87R57-Y0.55KW，YQFF87R57-Y0.75KW，YQFF87R57-Y1.1KW，YQFF87R57-Y1.5KW，YQFF87R57-Y63M4，YQFF87R57-Y71M4，YQFF87R57-Y80M4，YQFF87R57-Y90M4，YQFF87RF57-Y63M4，YQFF87RF57-Y71M4，YQFF87RF57-Y80M4，YQFF87RF57-Y90M4，YQFF87RF57-YB63M4，YQFF87RF57-YB71M4，YQFF87RF57-YB80M4，YQFF87RF57-YB90S4，YQFF87RF57-YDP63M4，YQFF87RF57-YDP71M4，YQFF87RF57-YDP80M4，YQFF87RF57-YDP90S4，YQFF87RF57-YE63M4，YQFF87RF57-YE71M4，YQFF87RF57-YE80M4，YQFF87RF57-YE90S4，YQFF87RF57-YEJ63M4，YQFF87RF57-YEJ71M4，YQFF87RF57-YEJ80M4，YQFF87RF57-YEJ90S4，YQFF87RF57-YEJB63M4，YQFF87RF57-YEJB71M4，YQFF87RF57-YEJB80M4，YQFF87RF57-YEJB90S4，YQFF87RF57-YP63M4，YQFF87RF57-YP71M4，YQFF87RF57-YP80M4，YQFF87RF57-YP90S4，YQFF87RF57-YPB63M4，YQFF87RF57-YPB71M4，YQFF87RF57-YPB80M4，YQFF87RF57-YPB90S4，YQFF87RF57-YPE63M4，YQFF87RF57-YPE71M4，YQFF87RF57-YPE80M4，YQFF87RF57-YPE90S4，YQFF87RF57-YS63M4，YQFF87RF57-YS71M4，YQFF87RF57-YS80M4，YQFF87RF57-YS90S4，YQFF87RF57-YVB63M4，YQFF87RF57-YVB71M4，YQFF87RF57-YVB80M4，YQFF87RF57-YVB90S4，YQFF87RF57-YVP63M4，YQFF87RF57-YVP71M4，YQFF87RF57-YVP80M4，YQFF87RF57-YVP90S4，YQFF87RF57-YVPEJ63M4，YQFF87RF57-YVPEJ71M4，YQFF87RF57-YVPEJ80M4，YQFF87RF57-YVPEJ90S4，JCFF87R57-Y0.12KW，JCFF87R57-Y0.18KW，JCFF87R57-Y0.25KW，JCFF87R57-Y0.37KW，JCFF87R57-Y0.55KW，JCFF87R57-Y0.75KW，JCFF87R57-Y1.1KW，JCFF87R57-Y1.5KW，JCFF87R57-Y63M4，JCFF87R57-Y71M4，JCFF87R57-Y80M4，JCFF87R57-Y90M4，JCFF87RF57-Y63M4，JCFF87RF57-Y71M4，JCFF87RF57-Y80M4，JCFF87RF57-Y90M4，JCFF87RF57-YB63M4，JCFF87RF57-YB71M4，JCFF87RF57-YB80M4，JCFF87RF57-YB90S4，JCFF87RF57-YDP63M4，JCFF87RF57-YDP71M4，JCFF87RF57-YDP80M4，JCFF87RF57-YDP90S4，JCFF87RF57-YE63M4，JCFF87RF57-YE71M4，JCFF87RF57-YE80M4，JCFF87RF57-YE90S4，JCFF87RF57-YEJ63M4，JCFF87RF57-YEJ71M4，JCFF87RF57-YEJ80M4，JCFF87RF57-YEJ90S4，JCFF87RF57-YEJB63M4，JCFF87RF57-YEJB71M4，JCFF87RF57-YEJB80M4，JCFF87RF57-YEJB90S4，JCFF87RF57-YP63M4，JCFF87RF57-YP71M4，JCFF87RF57-YP80M4，JCFF87RF57-YP90S4，JCFF87RF57-YPB63M4，JCFF87RF57-YPB71M4，JCFF87RF57-YPB80M4，JCFF87RF57-YPB90S4，JCFF87RF57-YPE63M4，JCFF87RF57-YPE71M4，JCFF87RF57-YPE80M4，JCFF87RF57-YPE90S4，JCFF87RF57-YS63M4，JCFF87RF57-YS71M4，JCFF87RF57-YS80M4，JCFF87RF57-YS90S4，JCFF87RF57-YVB63M4，JCFF87RF57-YVB71M4，JCFF87RF57-YVB80M4，JCFF87RF57-YVB90S4，JCFF87RF57-YVP63M4，JCFF87RF57-YVP71M4，JCFF87RF57-YVP80M4，JCFF87RF57-YVP90S4，JCFF87RF57-YVPEJ63M4，JCFF87RF57-YVPEJ71M4，JCFF87RF57-YVPEJ80M4，JCFF87RF57-YVPEJ90S4，AFF87R57-Y0.12KW，AFF87R57-Y0.18KW，AFF87R57-Y0.25KW，AFF87R57-Y0.37KW，AFF87R57-Y0.55KW，AFF87R57-Y0.75KW，AFF87R57-Y1.1KW，AFF87R57-Y1.5KW，AFF87R57-Y63M4，AFF87R57-Y71M4，AFF87R57-Y80M4，AFF87R57-Y90M4，AFF87RF57-Y63M4，AFF87RF57-Y71M4，AFF87RF57-Y80M4，AFF87RF57-Y90M4，AFF87RF57-YB63M4，AFF87RF57-YB71M4，AFF87RF57-YB80M4，AFF87RF57-YB90S4，AFF87RF57-YDP63M4，AFF87RF57-YDP71M4，AFF87RF57-YDP80M4，AFF87RF57-YDP90S4，AFF87RF57-YE63M4，AFF87RF57-YE71M4，AFF87RF57-YE80M4，AFF87RF57-YE90S4，AFF87RF57-YEJ63M4，AFF87RF57-YEJ71M4，AFF87RF57-YEJ80M4，AFF87RF57-YEJ90S4，AFF87RF57-YEJB63M4，AFF87RF57-YEJB71M4，AFF87RF57-YEJB80M4，AFF87RF57-YEJB90S4，AFF87RF57-YP63M4，AFF87RF57-YP71M4，AFF87RF57-YP80M4，AFF87RF57-YP90S4，AFF87RF57-YPB63M4，AFF87RF57-YPB71M4，AFF87RF57-YPB80M4，AFF87RF57-YPB90S4，AFF87RF57-YPE63M4，AFF87RF57-YPE71M4，AFF87RF57-YPE80M4，AFF87RF57-YPE90S4，AFF87RF57-YS63M4，AFF87RF57-YS71M4，AFF87RF57-YS80M4，AFF87RF57-YS90S4，AFF87RF57-YVB63M4，AFF87RF57-YVB71M4，AFF87RF57-YVB80M4，AFF87RF57-YVB90S4，AFF87RF57-YVP63M4，AFF87RF57-YVP71M4，AFF87RF57-YVP80M4，AFF87RF57-YVP90S4，AFF87RF57-YVPEJ63M4，AFF87RF57-YVPEJ71M4，AFF87RF57-YVPEJ80M4，AFF87RF57-YVPEJ90S4，WFF87R57-Y0.12KW，WFF87R57-Y0.18KW，WFF87R57-Y0.25KW，WFF87R57-Y0.37KW，WFF87R57-Y0.55KW，WFF87R57-Y0.75KW，WFF87R57-Y1.1KW，WFF87R57-Y1.5KW，WFF87R57-Y63M4，WFF87R57-Y71M4，WFF87R57-Y80M4，WFF87R57-Y90M4，WFF87RF57-Y63M4，WFF87RF57-Y71M4，WFF87RF57-Y80M4，WFF87RF57-Y90M4，WFF87RF57-YB63M4，WFF87RF57-YB71M4，WFF87RF57-YB80M4，WFF87RF57-YB90S4，WFF87RF57-YDP63M4，WFF87RF57-YDP71M4，WFF87RF57-YDP80M4，WFF87RF57-YDP90S4，WFF87RF57-YE63M4，WFF87RF57-YE71M4，WFF87RF57-YE80M4，WFF87RF57-YE90S4，WFF87RF57-YEJ63M4，WFF87RF57-YEJ71M4，WFF87RF57-YEJ80M4，WFF87RF57-YEJ90S4，WFF87RF57-YEJB63M4，WFF87RF57-YEJB71M4，WFF87RF57-YEJB80M4，WFF87RF57-YEJB90S4，WFF87RF57-YP63M4，WFF87RF57-YP71M4，WFF87RF57-YP80M4，WFF87RF57-YP90S4，WFF87RF57-YPB63M4，WFF87RF57-YPB71M4，WFF87RF57-YPB80M4，WFF87RF57-YPB90S4，WFF87RF57-YPE63M4，WFF87RF57-YPE71M4，WFF87RF57-YPE80M4，WFF87RF57-YPE90S4，WFF87RF57-YS63M4，WFF87RF57-YS71M4，WFF87RF57-YS80M4，WFF87RF57-YS90S4，WFF87RF57-YVB63M4，WFF87RF57-YVB71M4，WFF87RF57-YVB80M4，WFF87RF57-YVB90S4，WFF87RF57-YVP63M4，WFF87RF57-YVP71M4，WFF87RF57-YVP80M4，WFF87RF57-YVP90S4，WFF87RF57-YVPEJ63M4，WFF87RF57-YVPEJ71M4，WFF87RF57-YVPEJ80M4，WFF87RF57-YVPEJ90S4，NFF87R57-Y0.12KW，NFF87R57-Y0.18KW，NFF87R57-Y0.25KW，NFF87R57-Y0.37KW，NFF87R57-Y0.55KW，NFF87R57-Y0.75KW，NFF87R57-Y1.1KW，NFF87R57-Y1.5KW，NFF87R57-Y63M4，NFF87R57-Y71M4，NFF87R57-Y80M4，NFF87R57-Y90M4，NFF87RF57-Y63M4，NFF87RF57-Y71M4，NFF87RF57-Y80M4，NFF87RF57-Y90M4，NFF87RF57-YB63M4，NFF87RF57-YB71M4，NFF87RF57-YB80M4，NFF87RF57-YB90S4，NFF87RF57-YDP63M4，NFF87RF57-YDP71M4，NFF87RF57-YDP80M4，NFF87RF57-YDP90S4，NFF87RF57-YE63M4，NFF87RF57-YE71M4，NFF87RF57-YE80M4，NFF87RF57-YE90S4，NFF87RF57-YEJ63M4，NFF87RF57-YEJ71M4，NFF87RF57-YEJ80M4，NFF87RF57-YEJ90S4，NFF87RF57-YEJB63M4，NFF87RF57-YEJB71M4，NFF87RF57-YEJB80M4，NFF87RF57-YEJB90S4，NFF87RF57-YP63M4，NFF87RF57-YP71M4，NFF87RF57-YP80M4，NFF87RF57-YP90S4，NFF87RF57-YPB63M4，NFF87RF57-YPB71M4，NFF87RF57-YPB80M4，NFF87RF57-YPB90S4，NFF87RF57-YPE63M4，NFF87RF57-YPE71M4，NFF87RF57-YPE80M4，NFF87RF57-YPE90S4，NFF87RF57-YS63M4，NFF87RF57-YS71M4，NFF87RF57-YS80M4，NFF87RF57-YS90S4，NFF87RF57-YVB63M4，NFF87RF57-YVB71M4，NFF87RF57-YVB80M4，NFF87RF57-YVB90S4，NFF87RF57-YVP63M4，NFF87RF57-YVP71M4，NFF87RF57-YVP80M4，NFF87RF57-YVP90S4，NFF87RF57-YVPEJ63M4，NFF87RF57-YVPEJ71M4，NFF87RF57-YVPEJ80M4，NFF87RF57-YVPEJ90S4，SFF87R57-Y0.12KW，SFF87R57-Y0.18KW，SFF87R57-Y0.25KW，SFF87R57-Y0.37KW，SFF87R57-Y0.55KW，SFF87R57-Y0.75KW，SFF87R57-Y1.1KW，SFF87R57-Y1.5KW，SFF87R57-Y63M4，SFF87R57-Y71M4，SFF87R57-Y80M4，SFF87R57-Y90M4，SFF87RF57-Y63M4，SFF87RF57-Y71M4，SFF87RF57-Y80M4，SFF87RF57-Y90M4，SFF87RF57-YB63M4，SFF87RF57-YB71M4，SFF87RF57-YB80M4，SFF87RF57-YB90S4，SFF87RF57-YDP63M4，SFF87RF57-YDP71M4，SFF87RF57-YDP80M4，SFF87RF57-YDP90S4，SFF87RF57-YE63M4，SFF87RF57-YE71M4，SFF87RF57-YE80M4，SFF87RF57-YE90S4，SFF87RF57-YEJ63M4，SFF87RF57-YEJ71M4，SFF87RF57-YEJ80M4，SFF87RF57-YEJ90S4，SFF87RF57-YEJB63M4，SFF87RF57-YEJB71M4，SFF87RF57-YEJB80M4，SFF87RF57-YEJB90S4，SFF87RF57-YP63M4，SFF87RF57-YP71M4，SFF87RF57-YP80M4，SFF87RF57-YP90S4，SFF87RF57-YPB63M4，SFF87RF57-YPB71M4，SFF87RF57-YPB80M4，SFF87RF57-YPB90S4，SFF87RF57-YPE63M4，SFF87RF57-YPE71M4，SFF87RF57-YPE80M4，SFF87RF57-YPE90S4，SFF87RF57-YS63M4，SFF87RF57-YS71M4，SFF87RF57-YS80M4，SFF87RF57-YS90S4，SFF87RF57-YVB63M4，SFF87RF57-YVB71M4，SFF87RF57-YVB80M4，SFF87RF57-YVB90S4，SFF87RF57-YVP63M4，SFF87RF57-YVP71M4，SFF87RF57-YVP80M4，SFF87RF57-YVP90S4，SFF87RF57-YVPEJ63M4，SFF87RF57-YVPEJ71M4，SFF87RF57-YVPEJ80M4，SFF87RF57-YVPEJ90S4，XDFF87R57-Y0.12KW，XDFF87R57-Y0.18KW，XDFF87R57-Y0.25KW，XDFF87R57-Y0.37KW，XDFF87R57-Y0.55KW，XDFF87R57-Y0.75KW，XDFF87R57-Y1.1KW，XDFF87R57-Y1.5KW，XDFF87R57-Y63M4，XDFF87R57-Y71M4，XDFF87R57-Y80M4，XDFF87R57-Y90M4，XDFF87RF57-Y63M4，XDFF87RF57-Y71M4，XDFF87RF57-Y80M4，XDFF87RF57-Y90M4，XDFF87RF57-YB63M4，XDFF87RF57-YB71M4，XDFF87RF57-YB80M4，XDFF87RF57-YB90S4，XDFF87RF57-YDP63M4，XDFF87RF57-YDP71M4，XDFF87RF57-YDP80M4，XDFF87RF57-YDP90S4，XDFF87RF57-YE63M4，XDFF87RF57-YE71M4，XDFF87RF57-YE80M4，XDFF87RF57-YE90S4，XDFF87RF57-YEJ63M4，XDFF87RF57-YEJ71M4，XDFF87RF57-YEJ80M4，XDFF87RF57-YEJ90S4，XDFF87RF57-YEJB63M4，XDFF87RF57-YEJB71M4，XDFF87RF57-YEJB80M4，XDFF87RF57-YEJB90S4，XDFF87RF57-YP63M4，XDFF87RF57-YP71M4，XDFF87RF57-YP80M4，XDFF87RF57-YP90S4，XDFF87RF57-YPB63M4，XDFF87RF57-YPB71M4，XDFF87RF57-YPB80M4，XDFF87RF57-YPB90S4，XDFF87RF57-YPE63M4，XDFF87RF57-YPE71M4，XDFF87RF57-YPE80M4，XDFF87RF57-YPE90S4，XDFF87RF57-YS63M4，XDFF87RF57-YS71M4，XDFF87RF57-YS80M4，XDFF87RF57-YS90S4，XDFF87RF57-YVB63M4，XDFF87RF57-YVB71M4，XDFF87RF57-YVB80M4，XDFF87RF57-YVB90S4，XDFF87RF57-YVP63M4，XDFF87RF57-YVP71M4，XDFF87RF57-YVP80M4，XDFF87RF57-YVP90S4，XDFF87RF57-YVPEJ63M4，XDFF87RF57-YVPEJ71M4，XDFF87RF57-YVPEJ80M4，XDFF87RF57-YVPEJ90S4，FWF87RW57-Y0.12KW，FWF87RW57-Y0.18KW，FWF87RW57-Y0.25KW，FWF87RW57-Y0.37KW，FWF87RW57-Y0.55KW，FWF87RW57-Y0.75KW，FWF87RW57-Y1.1KW，FWF87RW57-Y1.5KW，FWF87RW57-Y63M4，FWF87RW57-Y71M4，FWF87RW57-Y80M4，FWF87RW57-Y90M4，FWF87RWFF57-Y63M4，FWF87RWFF57-Y71M4，FWF87RWFF57-Y80M4，FWF87RWFF57-Y90M4，FWF87RWFF57-YB63M4，FWF87RWFF57-YB71M4，FWF87RWFF57-YB80M4，FWF87RWFF57-YB90S4，FWF87RWFF57-YDP63M4，FWF87RWFF57-YDP71M4，FWF87RWFF57-YDP80M4，FWF87RWFF57-YDP90S4，FWF87RWFF57-YE63M4，FWF87RWFF57-YE71M4，FWF87RWFF57-YE80M4，FWF87RWFF57-YE90S4，FWF87RWFF57-YEJ63M4，FWF87RWFF57-YEJ71M4，FWF87RWFF57-YEJ80M4，FWF87RWFF57-YEJ90S4，FWF87RWFF57-YEJB63M4，FWF87RWFF57-YEJB71M4，FWF87RWFF57-YEJB80M4，FWF87RWFF57-YEJB90S4，FWF87RWFF57-YP63M4，FWF87RWFF57-YP71M4，FWF87RWFF57-YP80M4，FWF87RWFF57-YP90S4，FWF87RWFF57-YPB63M4，FWF87RWFF57-YPB71M4，FWF87RWFF57-YPB80M4，FWF87RWFF57-YPB90S4，FWF87RWFF57-YPE63M4，FWF87RWFF57-YPE71M4，FWF87RWFF57-YPE80M4，FWF87RWFF57-YPE90S4，FWF87RWFF57-YS63M4，FWF87RWFF57-YS71M4，FWF87RWFF57-YS80M4，FWF87RWFF57-YS90S4，FWF87RWFF57-YVB63M4，FWF87RWFF57-YVB71M4，FWF87RWFF57-YVB80M4，FWF87RWFF57-YVB90S4，FWF87RWFF57-YVP63M4，FWF87RWFF57-YVP71M4，FWF87RWFF57-YVP80M4，FWF87RWFF57-YVP90S4，FWF87RWFF57-YVPEJ63M4，FWF87RWFF57-YVPEJ71M4，FWF87RWFF57-YVPEJ80M4，FWF87RWFF57-YVPEJ90S4，FF89R59-Y0.12KW，FF89R59-Y0.18KW，FF89R59-Y0.25KW，FF89R59-Y0.37KW，FF89R59-Y0.55KW，FF89R59-Y0.75KW，FF89R59-Y1.1KW，FF89R59-Y1.5KW，FF89R59-Y63M4，FF89R59-Y71M4，FF89R59-Y80M4，FF89R59-Y90M4，FF89RF59-Y63M4，FF89RF59-Y71M4，FF89RF59-Y80M4，FF89RF59-Y90M4，FF89RF59-YB63M4，FF89RF59-YB71M4，FF89RF59-YB80M4，FF89RF59-YB90S4，FF89RF59-YDP63M4，FF89RF59-YDP71M4，FF89RF59-YDP80M4，FF89RF59-YDP90S4，FF89RF59-YE63M4，FF89RF59-YE71M4，FF89RF59-YE80M4，FF89RF59-YE90S4，FF89RF59-YEJ63M4，FF89RF59-YEJ71M4，FF89RF59-YEJ80M4，FF89RF59-YEJ90S4，FF89RF59-YEJB63M4，FF89RF59-YEJB71M4，FF89RF59-YEJB80M4，FF89RF59-YEJB90S4，FF89RF59-YP63M4，FF89RF59-YP71M4，FF89RF59-YP80M4，FF89RF59-YP90S4，FF89RF59-YPB63M4，FF89RF59-YPB71M4，FF89RF59-YPB80M4，FF89RF59-YPB90S4，FF89RF59-YPE63M4，FF89RF59-YPE71M4，FF89RF59-YPE80M4，FF89RF59-YPE90S4，FF89RF59-YS63M4，FF89RF59-YS71M4，FF89RF59-YS80M4，FF89RF59-YS90S4，FF89RF59-YVB63M4，FF89RF59-YVB71M4，FF89RF59-YVB80M4，FF89RF59-YVB90S4，FF89RF59-YVP63M4，FF89RF59-YVP71M4，FF89RF59-YVP80M4，FF89RF59-YVP90S4，FF89RF59-YVPEJ63M4，FF89RF59-YVPEJ71M4，FF89RF59-YVPEJ80M4，FF89RF59-YVPEJ90S4。

FF89R59減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.csfzfl.com/product/list-ffxiliejiansuji-cn.html

推薦型號：F89減速機
