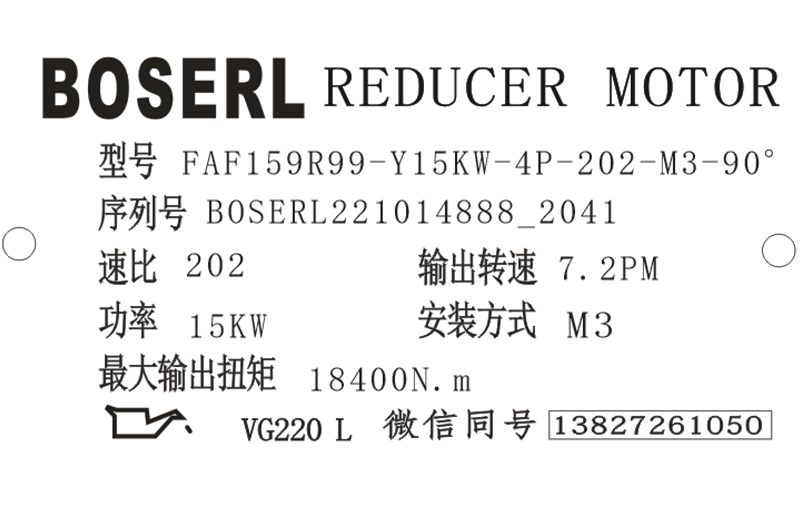

FAF159R99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF159R99減速機選型樣本。

FAF159R99-Y15KW-4P-202-M3-90°

FAF/R：系列代號

159/99：減速機規格代號

Y：電機

15KW：電機功率

4P：電機級數

202：減速機傳動比

M3：減速機安裝位置

90°：接線盒位置

FAF159R99減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變?nèi)嚯姍C的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

一、FAF159R99減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

二、FAF159R99減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

三、FAF159R99減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF159R99減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

五、FAF159R99減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

六、FAF159R99減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF159R99減速電機型號：

YQFAF157R97-Y0.55KW，YQFAF157R97-Y0.75KW，YQFAF157R97-Y1.1KW，YQFAF157R97-Y1.5KW，YQFAF157R97-Y100M4，YQFAF157R97-Y112M4，YQFAF157R97-Y11KW，YQFAF157R97-Y132M4，YQFAF157R97-Y15KW，YQFAF157R97-Y160M4，YQFAF157R97-Y18.5KW，YQFAF157R97-Y180M4，YQFAF157R97-Y2.2KW，YQFAF157R97-Y3KW，YQFAF157R97-Y4KW，YQFAF157R97-Y5.5KW，YQFAF157R97-Y80M4，YQFAF157R97-Y90M4，YQFAF157RF97-Y100M4，YQFAF157RF97-Y112M4，YQFAF157RF97-Y132M4，YQFAF157RF97-Y160M4，YQFAF157RF97-Y180M4，YQFAF157RF97-Y80M4，YQFAF157RF97-Y90M4，YQFAF157RF97-YB100L4，YQFAF157RF97-YB112M4，YQFAF157RF97-YB132M4，YQFAF157RF97-YB160M4，YQFAF157RF97-YB180M4，YQFAF157RF97-YB80M4，YQFAF157RF97-YB90S4，YQFAF157RF97-YDP100L4，YQFAF157RF97-YDP112M4，YQFAF157RF97-YDP132M4，YQFAF157RF97-YDP160M4，YQFAF157RF97-YDP180M4，YQFAF157RF97-YDP80M4，YQFAF157RF97-YDP90S4，YQFAF157RF97-YE100L4，YQFAF157RF97-YE112M4，YQFAF157RF97-YE132M4，YQFAF157RF97-YE160M4，YQFAF157RF97-YE180M4，YQFAF157RF97-YE80M4，YQFAF157RF97-YE90S4，YQFAF157RF97-YEJ100L4，YQFAF157RF97-YEJ112M4，YQFAF157RF97-YEJ132M4，YQFAF157RF97-YEJ160M4，YQFAF157RF97-YEJ180M4，YQFAF157RF97-YEJ80M4，YQFAF157RF97-YEJ90S4，YQFAF157RF97-YEJB100L4，YQFAF157RF97-YEJB112M4，YQFAF157RF97-YEJB132M4，YQFAF157RF97-YEJB160M4，YQFAF157RF97-YEJB180M4，YQFAF157RF97-YEJB80M4，YQFAF157RF97-YEJB90S4，YQFAF157RF97-YP100L4，YQFAF157RF97-YP112M4，YQFAF157RF97-YP132M4，YQFAF157RF97-YP160M4，YQFAF157RF97-YP180M4，YQFAF157RF97-YP80M4，YQFAF157RF97-YP90S4，YQFAF157RF97-YPB100L4，YQFAF157RF97-YPB112M4，YQFAF157RF97-YPB132M4，YQFAF157RF97-YPB160M4，YQFAF157RF97-YPB180M4，YQFAF157RF97-YPB80M4，YQFAF157RF97-YPB90S4，YQFAF157RF97-YPE100L4，YQFAF157RF97-YPE112M4，YQFAF157RF97-YPE132M4，YQFAF157RF97-YPE160M4，YQFAF157RF97-YPE180M4，YQFAF157RF97-YPE80M4，YQFAF157RF97-YPE90S4，YQFAF157RF97-YS100L4，YQFAF157RF97-YS112M4，YQFAF157RF97-YS132M4，YQFAF157RF97-YS160M4，YQFAF157RF97-YS180M4，YQFAF157RF97-YS80M4，YQFAF157RF97-YS90S4，YQFAF157RF97-YVB100L4，YQFAF157RF97-YVB112M4，YQFAF157RF97-YVB132M4，YQFAF157RF97-YVB160M4，YQFAF157RF97-YVB180M4，YQFAF157RF97-YVB80M4，YQFAF157RF97-YVB90S4，YQFAF157RF97-YVP100L4，YQFAF157RF97-YVP112M4，YQFAF157RF97-YVP132M4，YQFAF157RF97-YVP160M4，YQFAF157RF97-YVP180M4，YQFAF157RF97-YVP80M4，YQFAF157RF97-YVP90S4，YQFAF157RF97-YVPEJ100L4，YQFAF157RF97-YVPEJ112M4，YQFAF157RF97-YVPEJ132M4，YQFAF157RF97-YVPEJ160M4，YQFAF157RF97-YVPEJ180M4，YQFAF157RF97-YVPEJ80M4，YQFAF157RF97-YVPEJ90S4，XDFAF157R97-Y0.55KW，XDFAF157R97-Y0.75KW，XDFAF157R97-Y1.1KW，XDFAF157R97-Y1.5KW，XDFAF157R97-Y100M4，XDFAF157R97-Y112M4，XDFAF157R97-Y11KW，XDFAF157R97-Y132M4，XDFAF157R97-Y15KW，XDFAF157R97-Y160M4，XDFAF157R97-Y18.5KW，XDFAF157R97-Y180M4，XDFAF157R97-Y2.2KW，XDFAF157R97-Y3KW，XDFAF157R97-Y4KW，XDFAF157R97-Y5.5KW，XDFAF157R97-Y80M4，XDFAF157R97-Y90M4，XDFAF157RF97-Y100M4，XDFAF157RF97-Y112M4，XDFAF157RF97-Y132M4，XDFAF157RF97-Y160M4，XDFAF157RF97-Y180M4，XDFAF157RF97-Y80M4，XDFAF157RF97-Y90M4，XDFAF157RF97-YB100L4，XDFAF157RF97-YB112M4，XDFAF157RF97-YB132M4，XDFAF157RF97-YB160M4，XDFAF157RF97-YB180M4，XDFAF157RF97-YB80M4，XDFAF157RF97-YB90S4，XDFAF157RF97-YDP100L4，XDFAF157RF97-YDP112M4，XDFAF157RF97-YDP132M4，XDFAF157RF97-YDP160M4，XDFAF157RF97-YDP180M4，XDFAF157RF97-YDP80M4，XDFAF157RF97-YDP90S4，XDFAF157RF97-YE100L4，XDFAF157RF97-YE112M4，XDFAF157RF97-YE132M4，XDFAF157RF97-YE160M4，XDFAF157RF97-YE180M4，XDFAF157RF97-YE80M4，XDFAF157RF97-YE90S4，XDFAF157RF97-YEJ100L4，XDFAF157RF97-YEJ112M4，XDFAF157RF97-YEJ132M4，XDFAF157RF97-YEJ160M4，XDFAF157RF97-YEJ180M4，XDFAF157RF97-YEJ80M4，XDFAF157RF97-YEJ90S4，XDFAF157RF97-YEJB100L4，XDFAF157RF97-YEJB112M4，XDFAF157RF97-YEJB132M4，XDFAF157RF97-YEJB160M4，XDFAF157RF97-YEJB180M4，XDFAF157RF97-YEJB80M4，XDFAF157RF97-YEJB90S4，XDFAF157RF97-YP100L4，XDFAF157RF97-YP112M4，XDFAF157RF97-YP132M4，XDFAF157RF97-YP160M4，XDFAF157RF97-YP180M4，XDFAF157RF97-YP80M4，XDFAF157RF97-YP90S4，XDFAF157RF97-YPB100L4，XDFAF157RF97-YPB112M4，XDFAF157RF97-YPB132M4，XDFAF157RF97-YPB160M4，XDFAF157RF97-YPB180M4，XDFAF157RF97-YPB80M4，XDFAF157RF97-YPB90S4，XDFAF157RF97-YPE100L4，XDFAF157RF97-YPE112M4，XDFAF157RF97-YPE132M4，XDFAF157RF97-YPE160M4，XDFAF157RF97-YPE180M4，XDFAF157RF97-YPE80M4，XDFAF157RF97-YPE90S4，XDFAF157RF97-YS100L4，XDFAF157RF97-YS112M4，XDFAF157RF97-YS132M4，XDFAF157RF97-YS160M4，XDFAF157RF97-YS180M4，XDFAF157RF97-YS80M4，XDFAF157RF97-YS90S4，XDFAF157RF97-YVB100L4，XDFAF157RF97-YVB112M4，XDFAF157RF97-YVB132M4，XDFAF157RF97-YVB160M4，XDFAF157RF97-YVB180M4，XDFAF157RF97-YVB80M4，XDFAF157RF97-YVB90S4，XDFAF157RF97-YVP100L4，XDFAF157RF97-YVP112M4，XDFAF157RF97-YVP132M4，XDFAF157RF97-YVP160M4，XDFAF157RF97-YVP180M4，XDFAF157RF97-YVP80M4，XDFAF157RF97-YVP90S4，XDFAF157RF97-YVPEJ100L4，XDFAF157RF97-YVPEJ112M4，XDFAF157RF97-YVPEJ132M4，XDFAF157RF97-YVPEJ160M4，XDFAF157RF97-YVPEJ180M4，XDFAF157RF97-YVPEJ80M4，XDFAF157RF97-YVPEJ90S4，JCFAF157R97-Y0.55KW，JCFAF157R97-Y0.75KW，JCFAF157R97-Y1.1KW，JCFAF157R97-Y1.5KW，JCFAF157R97-Y100M4，JCFAF157R97-Y112M4，JCFAF157R97-Y11KW，JCFAF157R97-Y132M4，JCFAF157R97-Y15KW，JCFAF157R97-Y160M4，JCFAF157R97-Y18.5KW，JCFAF157R97-Y180M4，JCFAF157R97-Y2.2KW，JCFAF157R97-Y3KW，JCFAF157R97-Y4KW，JCFAF157R97-Y5.5KW，JCFAF157R97-Y80M4，JCFAF157R97-Y90M4，JCFAF157RF97-Y100M4，JCFAF157RF97-Y112M4，JCFAF157RF97-Y132M4，JCFAF157RF97-Y160M4，JCFAF157RF97-Y180M4，JCFAF157RF97-Y80M4，JCFAF157RF97-Y90M4，JCFAF157RF97-YB100L4，JCFAF157RF97-YB112M4，JCFAF157RF97-YB132M4，JCFAF157RF97-YB160M4，JCFAF157RF97-YB180M4，JCFAF157RF97-YB80M4，JCFAF157RF97-YB90S4，JCFAF157RF97-YDP100L4，JCFAF157RF97-YDP112M4，JCFAF157RF97-YDP132M4，JCFAF157RF97-YDP160M4，JCFAF157RF97-YDP180M4，JCFAF157RF97-YDP80M4，JCFAF157RF97-YDP90S4，JCFAF157RF97-YE100L4，JCFAF157RF97-YE112M4，JCFAF157RF97-YE132M4，JCFAF157RF97-YE160M4，JCFAF157RF97-YE180M4，JCFAF157RF97-YE80M4，JCFAF157RF97-YE90S4，JCFAF157RF97-YEJ100L4，JCFAF157RF97-YEJ112M4，JCFAF157RF97-YEJ132M4，JCFAF157RF97-YEJ160M4，JCFAF157RF97-YEJ180M4，JCFAF157RF97-YEJ80M4，JCFAF157RF97-YEJ90S4，JCFAF157RF97-YEJB100L4，JCFAF157RF97-YEJB112M4，JCFAF157RF97-YEJB132M4，JCFAF157RF97-YEJB160M4，JCFAF157RF97-YEJB180M4，JCFAF157RF97-YEJB80M4，JCFAF157RF97-YEJB90S4，JCFAF157RF97-YP100L4，JCFAF157RF97-YP112M4，JCFAF157RF97-YP132M4，JCFAF157RF97-YP160M4，JCFAF157RF97-YP180M4，JCFAF157RF97-YP80M4，JCFAF157RF97-YP90S4，JCFAF157RF97-YPB100L4，JCFAF157RF97-YPB112M4，JCFAF157RF97-YPB132M4，JCFAF157RF97-YPB160M4，JCFAF157RF97-YPB180M4，JCFAF157RF97-YPB80M4，JCFAF157RF97-YPB90S4，JCFAF157RF97-YPE100L4，JCFAF157RF97-YPE112M4，JCFAF157RF97-YPE132M4，JCFAF157RF97-YPE160M4，JCFAF157RF97-YPE180M4，JCFAF157RF97-YPE80M4，JCFAF157RF97-YPE90S4，JCFAF157RF97-YS100L4，JCFAF157RF97-YS112M4，JCFAF157RF97-YS132M4，JCFAF157RF97-YS160M4，JCFAF157RF97-YS180M4，JCFAF157RF97-YS80M4，JCFAF157RF97-YS90S4，JCFAF157RF97-YVB100L4，JCFAF157RF97-YVB112M4，JCFAF157RF97-YVB132M4，JCFAF157RF97-YVB160M4，JCFAF157RF97-YVB180M4，JCFAF157RF97-YVB80M4，JCFAF157RF97-YVB90S4，JCFAF157RF97-YVP100L4，JCFAF157RF97-YVP112M4，JCFAF157RF97-YVP132M4，JCFAF157RF97-YVP160M4，JCFAF157RF97-YVP180M4，JCFAF157RF97-YVP80M4，JCFAF157RF97-YVP90S4，JCFAF157RF97-YVPEJ100L4，JCFAF157RF97-YVPEJ112M4，JCFAF157RF97-YVPEJ132M4，JCFAF157RF97-YVPEJ160M4，JCFAF157RF97-YVPEJ180M4，JCFAF157RF97-YVPEJ80M4，JCFAF157RF97-YVPEJ90S4，WFAF157R97-Y0.55KW，WFAF157R97-Y0.75KW，WFAF157R97-Y1.1KW，WFAF157R97-Y1.5KW，WFAF157R97-Y100M4，WFAF157R97-Y112M4，WFAF157R97-Y11KW，WFAF157R97-Y132M4，WFAF157R97-Y15KW，WFAF157R97-Y160M4，WFAF157R97-Y18.5KW，WFAF157R97-Y180M4，WFAF157R97-Y2.2KW，WFAF157R97-Y3KW，WFAF157R97-Y4KW，WFAF157R97-Y5.5KW，WFAF157R97-Y80M4，WFAF157R97-Y90M4，WFAF157RF97-Y100M4，WFAF157RF97-Y112M4，WFAF157RF97-Y132M4，WFAF157RF97-Y160M4，WFAF157RF97-Y180M4，WFAF157RF97-Y80M4，WFAF157RF97-Y90M4，WFAF157RF97-YB100L4，WFAF157RF97-YB112M4，WFAF157RF97-YB132M4，WFAF157RF97-YB160M4，WFAF157RF97-YB180M4，WFAF157RF97-YB80M4，WFAF157RF97-YB90S4，WFAF157RF97-YDP100L4，WFAF157RF97-YDP112M4，WFAF157RF97-YDP132M4，WFAF157RF97-YDP160M4，WFAF157RF97-YDP180M4，WFAF157RF97-YDP80M4，WFAF157RF97-YDP90S4，WFAF157RF97-YE100L4，WFAF157RF97-YE112M4，WFAF157RF97-YE132M4，WFAF157RF97-YE160M4，WFAF157RF97-YE180M4，WFAF157RF97-YE80M4，WFAF157RF97-YE90S4，WFAF157RF97-YEJ100L4，WFAF157RF97-YEJ112M4，WFAF157RF97-YEJ132M4，WFAF157RF97-YEJ160M4，WFAF157RF97-YEJ180M4，WFAF157RF97-YEJ80M4，WFAF157RF97-YEJ90S4，WFAF157RF97-YEJB100L4，WFAF157RF97-YEJB112M4，WFAF157RF97-YEJB132M4，WFAF157RF97-YEJB160M4，WFAF157RF97-YEJB180M4，WFAF157RF97-YEJB80M4，WFAF157RF97-YEJB90S4，WFAF157RF97-YP100L4，WFAF157RF97-YP112M4，WFAF157RF97-YP132M4，WFAF157RF97-YP160M4，WFAF157RF97-YP180M4，WFAF157RF97-YP80M4，WFAF157RF97-YP90S4，WFAF157RF97-YPB100L4，WFAF157RF97-YPB112M4，WFAF157RF97-YPB132M4，WFAF157RF97-YPB160M4，WFAF157RF97-YPB180M4，WFAF157RF97-YPB80M4，WFAF157RF97-YPB90S4，WFAF157RF97-YPE100L4，WFAF157RF97-YPE112M4，WFAF157RF97-YPE132M4，WFAF157RF97-YPE160M4，WFAF157RF97-YPE180M4，WFAF157RF97-YPE80M4，WFAF157RF97-YPE90S4，WFAF157RF97-YS100L4，WFAF157RF97-YS112M4，WFAF157RF97-YS132M4，WFAF157RF97-YS160M4，WFAF157RF97-YS180M4，WFAF157RF97-YS80M4，WFAF157RF97-YS90S4，WFAF157RF97-YVB100L4，WFAF157RF97-YVB112M4，WFAF157RF97-YVB132M4，WFAF157RF97-YVB160M4，WFAF157RF97-YVB180M4，WFAF157RF97-YVB80M4，WFAF157RF97-YVB90S4，WFAF157RF97-YVP100L4，WFAF157RF97-YVP112M4，WFAF157RF97-YVP132M4，WFAF157RF97-YVP160M4，WFAF157RF97-YVP180M4，WFAF157RF97-YVP80M4，WFAF157RF97-YVP90S4，WFAF157RF97-YVPEJ100L4，WFAF157RF97-YVPEJ112M4，WFAF157RF97-YVPEJ132M4，WFAF157RF97-YVPEJ160M4，WFAF157RF97-YVPEJ180M4，WFAF157RF97-YVPEJ80M4，WFAF157RF97-YVPEJ90S4，AFAF157R97-Y0.55KW，AFAF157R97-Y0.75KW，AFAF157R97-Y1.1KW，AFAF157R97-Y1.5KW，AFAF157R97-Y100M4，AFAF157R97-Y112M4，AFAF157R97-Y11KW，AFAF157R97-Y132M4，AFAF157R97-Y15KW，AFAF157R97-Y160M4，AFAF157R97-Y18.5KW，AFAF157R97-Y180M4，AFAF157R97-Y2.2KW，AFAF157R97-Y3KW，AFAF157R97-Y4KW，AFAF157R97-Y5.5KW，AFAF157R97-Y80M4，AFAF157R97-Y90M4，AFAF157RF97-Y100M4，AFAF157RF97-Y112M4，AFAF157RF97-Y132M4，AFAF157RF97-Y160M4，AFAF157RF97-Y180M4，AFAF157RF97-Y80M4，AFAF157RF97-Y90M4，AFAF157RF97-YB100L4，AFAF157RF97-YB112M4，AFAF157RF97-YB132M4，AFAF157RF97-YB160M4，AFAF157RF97-YB180M4，AFAF157RF97-YB80M4，AFAF157RF97-YB90S4，AFAF157RF97-YDP100L4，AFAF157RF97-YDP112M4，AFAF157RF97-YDP132M4，AFAF157RF97-YDP160M4，AFAF157RF97-YDP180M4，AFAF157RF97-YDP80M4，AFAF157RF97-YDP90S4，AFAF157RF97-YE100L4，AFAF157RF97-YE112M4，AFAF157RF97-YE132M4，AFAF157RF97-YE160M4，AFAF157RF97-YE180M4，AFAF157RF97-YE80M4，AFAF157RF97-YE90S4，AFAF157RF97-YEJ100L4，AFAF157RF97-YEJ112M4，AFAF157RF97-YEJ132M4，AFAF157RF97-YEJ160M4，AFAF157RF97-YEJ180M4，AFAF157RF97-YEJ80M4，AFAF157RF97-YEJ90S4，AFAF157RF97-YEJB100L4，AFAF157RF97-YEJB112M4，AFAF157RF97-YEJB132M4，AFAF157RF97-YEJB160M4，AFAF157RF97-YEJB180M4，AFAF157RF97-YEJB80M4，AFAF157RF97-YEJB90S4，AFAF157RF97-YP100L4，AFAF157RF97-YP112M4，AFAF157RF97-YP132M4，AFAF157RF97-YP160M4，AFAF157RF97-YP180M4，AFAF157RF97-YP80M4，AFAF157RF97-YP90S4，AFAF157RF97-YPB100L4，AFAF157RF97-YPB112M4，AFAF157RF97-YPB132M4，AFAF157RF97-YPB160M4，AFAF157RF97-YPB180M4，AFAF157RF97-YPB80M4，AFAF157RF97-YPB90S4，AFAF157RF97-YPE100L4，AFAF157RF97-YPE112M4，AFAF157RF97-YPE132M4，AFAF157RF97-YPE160M4，AFAF157RF97-YPE180M4，AFAF157RF97-YPE80M4，AFAF157RF97-YPE90S4，AFAF157RF97-YS100L4，AFAF157RF97-YS112M4，AFAF157RF97-YS132M4，AFAF157RF97-YS160M4，AFAF157RF97-YS180M4，AFAF157RF97-YS80M4，AFAF157RF97-YS90S4，AFAF157RF97-YVB100L4，AFAF157RF97-YVB112M4，AFAF157RF97-YVB132M4，AFAF157RF97-YVB160M4，AFAF157RF97-YVB180M4，AFAF157RF97-YVB80M4，AFAF157RF97-YVB90S4，AFAF157RF97-YVP100L4，AFAF157RF97-YVP112M4，AFAF157RF97-YVP132M4，AFAF157RF97-YVP160M4，AFAF157RF97-YVP180M4，AFAF157RF97-YVP80M4，AFAF157RF97-YVP90S4，AFAF157RF97-YVPEJ100L4，AFAF157RF97-YVPEJ112M4，AFAF157RF97-YVPEJ132M4，AFAF157RF97-YVPEJ160M4，AFAF157RF97-YVPEJ180M4，AFAF157RF97-YVPEJ80M4，AFAF157RF97-YVPEJ90S4，NFAF157R97-Y0.55KW，NFAF157R97-Y0.75KW，NFAF157R97-Y1.1KW，NFAF157R97-Y1.5KW，NFAF157R97-Y100M4，NFAF157R97-Y112M4，NFAF157R97-Y11KW，NFAF157R97-Y132M4，NFAF157R97-Y15KW，NFAF157R97-Y160M4，NFAF157R97-Y18.5KW，NFAF157R97-Y180M4，NFAF157R97-Y2.2KW，NFAF157R97-Y3KW，NFAF157R97-Y4KW，NFAF157R97-Y5.5KW，NFAF157R97-Y80M4，NFAF157R97-Y90M4，NFAF157RF97-Y100M4，NFAF157RF97-Y112M4，NFAF157RF97-Y132M4，NFAF157RF97-Y160M4，NFAF157RF97-Y180M4，NFAF157RF97-Y80M4，NFAF157RF97-Y90M4，NFAF157RF97-YB100L4，NFAF157RF97-YB112M4，NFAF157RF97-YB132M4，NFAF157RF97-YB160M4，NFAF157RF97-YB180M4，NFAF157RF97-YB80M4，NFAF157RF97-YB90S4，NFAF157RF97-YDP100L4，NFAF157RF97-YDP112M4，NFAF157RF97-YDP132M4，NFAF157RF97-YDP160M4，NFAF157RF97-YDP180M4，NFAF157RF97-YDP80M4，NFAF157RF97-YDP90S4，NFAF157RF97-YE100L4，NFAF157RF97-YE112M4，NFAF157RF97-YE132M4，NFAF157RF97-YE160M4，NFAF157RF97-YE180M4，NFAF157RF97-YE80M4，NFAF157RF97-YE90S4，NFAF157RF97-YEJ100L4，NFAF157RF97-YEJ112M4，NFAF157RF97-YEJ132M4，NFAF157RF97-YEJ160M4，NFAF157RF97-YEJ180M4，NFAF157RF97-YEJ80M4，NFAF157RF97-YEJ90S4，NFAF157RF97-YEJB100L4，NFAF157RF97-YEJB112M4，NFAF157RF97-YEJB132M4，NFAF157RF97-YEJB160M4，NFAF157RF97-YEJB180M4，NFAF157RF97-YEJB80M4，NFAF157RF97-YEJB90S4，NFAF157RF97-YP100L4，NFAF157RF97-YP112M4，NFAF157RF97-YP132M4，NFAF157RF97-YP160M4，NFAF157RF97-YP180M4，NFAF157RF97-YP80M4，NFAF157RF97-YP90S4，NFAF157RF97-YPB100L4，NFAF157RF97-YPB112M4，NFAF157RF97-YPB132M4，NFAF157RF97-YPB160M4，NFAF157RF97-YPB180M4，NFAF157RF97-YPB80M4，NFAF157RF97-YPB90S4，NFAF157RF97-YPE100L4，NFAF157RF97-YPE112M4，NFAF157RF97-YPE132M4，NFAF157RF97-YPE160M4，NFAF157RF97-YPE180M4，NFAF157RF97-YPE80M4，NFAF157RF97-YPE90S4，NFAF157RF97-YS100L4，NFAF157RF97-YS112M4，NFAF157RF97-YS132M4，NFAF157RF97-YS160M4，NFAF157RF97-YS180M4，NFAF157RF97-YS80M4，NFAF157RF97-YS90S4，NFAF157RF97-YVB100L4，NFAF157RF97-YVB112M4，NFAF157RF97-YVB132M4，NFAF157RF97-YVB160M4，NFAF157RF97-YVB180M4，NFAF157RF97-YVB80M4，NFAF157RF97-YVB90S4，NFAF157RF97-YVP100L4，NFAF157RF97-YVP112M4，NFAF157RF97-YVP132M4，NFAF157RF97-YVP160M4，NFAF157RF97-YVP180M4，NFAF157RF97-YVP80M4，NFAF157RF97-YVP90S4，NFAF157RF97-YVPEJ100L4，NFAF157RF97-YVPEJ112M4，NFAF157RF97-YVPEJ132M4，NFAF157RF97-YVPEJ160M4，NFAF157RF97-YVPEJ180M4，NFAF157RF97-YVPEJ80M4，NFAF157RF97-YVPEJ90S4，SFAF157R97-Y0.55KW，SFAF157R97-Y0.75KW，SFAF157R97-Y1.1KW，SFAF157R97-Y1.5KW，SFAF157R97-Y100M4，SFAF157R97-Y112M4，SFAF157R97-Y11KW，SFAF157R97-Y132M4，SFAF157R97-Y15KW，SFAF157R97-Y160M4，SFAF157R97-Y18.5KW，SFAF157R97-Y180M4，SFAF157R97-Y2.2KW，SFAF157R97-Y3KW，SFAF157R97-Y4KW，SFAF157R97-Y5.5KW，SFAF157R97-Y80M4，SFAF157R97-Y90M4，SFAF157RF97-Y100M4，SFAF157RF97-Y112M4，SFAF157RF97-Y132M4，SFAF157RF97-Y160M4，SFAF157RF97-Y180M4，SFAF157RF97-Y80M4，SFAF157RF97-Y90M4，SFAF157RF97-YB100L4，SFAF157RF97-YB112M4，SFAF157RF97-YB132M4，SFAF157RF97-YB160M4，SFAF157RF97-YB180M4，SFAF157RF97-YB80M4，SFAF157RF97-YB90S4，SFAF157RF97-YDP100L4，SFAF157RF97-YDP112M4，SFAF157RF97-YDP132M4，SFAF157RF97-YDP160M4，SFAF157RF97-YDP180M4，SFAF157RF97-YDP80M4，SFAF157RF97-YDP90S4，SFAF157RF97-YE100L4，SFAF157RF97-YE112M4，SFAF157RF97-YE132M4，SFAF157RF97-YE160M4，SFAF157RF97-YE180M4，SFAF157RF97-YE80M4，SFAF157RF97-YE90S4，SFAF157RF97-YEJ100L4，SFAF157RF97-YEJ112M4，SFAF157RF97-YEJ132M4，SFAF157RF97-YEJ160M4，SFAF157RF97-YEJ180M4，SFAF157RF97-YEJ80M4，SFAF157RF97-YEJ90S4，SFAF157RF97-YEJB100L4，SFAF157RF97-YEJB112M4，SFAF157RF97-YEJB132M4，SFAF157RF97-YEJB160M4，SFAF157RF97-YEJB180M4，SFAF157RF97-YEJB80M4，SFAF157RF97-YEJB90S4，SFAF157RF97-YP100L4，SFAF157RF97-YP112M4，SFAF157RF97-YP132M4，SFAF157RF97-YP160M4，SFAF157RF97-YP180M4，SFAF157RF97-YP80M4，SFAF157RF97-YP90S4，SFAF157RF97-YPB100L4，SFAF157RF97-YPB112M4，SFAF157RF97-YPB132M4，SFAF157RF97-YPB160M4，SFAF157RF97-YPB180M4，SFAF157RF97-YPB80M4，SFAF157RF97-YPB90S4，SFAF157RF97-YPE100L4，SFAF157RF97-YPE112M4，SFAF157RF97-YPE132M4，SFAF157RF97-YPE160M4，SFAF157RF97-YPE180M4，SFAF157RF97-YPE80M4，SFAF157RF97-YPE90S4，SFAF157RF97-YS100L4，SFAF157RF97-YS112M4，SFAF157RF97-YS132M4，SFAF157RF97-YS160M4，SFAF157RF97-YS180M4，SFAF157RF97-YS80M4，SFAF157RF97-YS90S4，SFAF157RF97-YVB100L4，SFAF157RF97-YVB112M4，SFAF157RF97-YVB132M4，SFAF157RF97-YVB160M4，SFAF157RF97-YVB180M4，SFAF157RF97-YVB80M4，SFAF157RF97-YVB90S4，SFAF157RF97-YVP100L4，SFAF157RF97-YVP112M4，SFAF157RF97-YVP132M4，SFAF157RF97-YVP160M4，SFAF157RF97-YVP180M4，SFAF157RF97-YVP80M4，SFAF157RF97-YVP90S4，SFAF157RF97-YVPEJ100L4，SFAF157RF97-YVPEJ112M4，SFAF157RF97-YVPEJ132M4，SFAF157RF97-YVPEJ160M4，SFAF157RF97-YVPEJ180M4，SFAF157RF97-YVPEJ80M4，SFAF157RF97-YVPEJ90S4，F(xiàn)WAF157RW97-Y0.55KW，F(xiàn)WAF157RW97-Y0.75KW，F(xiàn)WAF157RW97-Y1.1KW，F(xiàn)WAF157RW97-Y1.5KW，F(xiàn)WAF157RW97-Y100M4，F(xiàn)WAF157RW97-Y112M4，F(xiàn)WAF157RW97-Y11KW，F(xiàn)WAF157RW97-Y132M4，F(xiàn)WAF157RW97-Y15KW，F(xiàn)WAF157RW97-Y160M4，F(xiàn)WAF157RW97-Y18.5KW，F(xiàn)WAF157RW97-Y180M4，F(xiàn)WAF157RW97-Y2.2KW，F(xiàn)WAF157RW97-Y3KW，F(xiàn)WAF157RW97-Y4KW，F(xiàn)WAF157RW97-Y5.5KW，F(xiàn)WAF157RW97-Y80M4，F(xiàn)WAF157RW97-Y90M4，F(xiàn)WAF157RWFAF97-Y100M4，F(xiàn)WAF157RWFAF97-Y112M4，F(xiàn)WAF157RWFAF97-Y132M4，F(xiàn)WAF157RWFAF97-Y160M4，F(xiàn)WAF157RWFAF97-Y180M4，F(xiàn)WAF157RWFAF97-Y80M4，F(xiàn)WAF157RWFAF97-Y90M4，F(xiàn)WAF157RWFAF97-YB100L4，F(xiàn)WAF157RWFAF97-YB112M4，F(xiàn)WAF157RWFAF97-YB132M4，F(xiàn)WAF157RWFAF97-YB160M4，F(xiàn)WAF157RWFAF97-YB180M4，F(xiàn)WAF157RWFAF97-YB80M4，F(xiàn)WAF157RWFAF97-YB90S4，F(xiàn)WAF157RWFAF97-YDP100L4，F(xiàn)WAF157RWFAF97-YDP112M4，F(xiàn)WAF157RWFAF97-YDP132M4，F(xiàn)WAF157RWFAF97-YDP160M4，F(xiàn)WAF157RWFAF97-YDP180M4，F(xiàn)WAF157RWFAF97-YDP80M4，F(xiàn)WAF157RWFAF97-YDP90S4，F(xiàn)WAF157RWFAF97-YE100L4，F(xiàn)WAF157RWFAF97-YE112M4，F(xiàn)WAF157RWFAF97-YE132M4，F(xiàn)WAF157RWFAF97-YE160M4，F(xiàn)WAF157RWFAF97-YE180M4，F(xiàn)WAF157RWFAF97-YE80M4，F(xiàn)WAF157RWFAF97-YE90S4，F(xiàn)WAF157RWFAF97-YEJ100L4，F(xiàn)WAF157RWFAF97-YEJ112M4，F(xiàn)WAF157RWFAF97-YEJ132M4，F(xiàn)WAF157RWFAF97-YEJ160M4，F(xiàn)WAF157RWFAF97-YEJ180M4，F(xiàn)WAF157RWFAF97-YEJ80M4，F(xiàn)WAF157RWFAF97-YEJ90S4，F(xiàn)WAF157RWFAF97-YEJB100L4，F(xiàn)WAF157RWFAF97-YEJB112M4，F(xiàn)WAF157RWFAF97-YEJB132M4，F(xiàn)WAF157RWFAF97-YEJB160M4，F(xiàn)WAF157RWFAF97-YEJB180M4，F(xiàn)WAF157RWFAF97-YEJB80M4，F(xiàn)WAF157RWFAF97-YEJB90S4，F(xiàn)WAF157RWFAF97-YP100L4，F(xiàn)WAF157RWFAF97-YP112M4，F(xiàn)WAF157RWFAF97-YP132M4，F(xiàn)WAF157RWFAF97-YP160M4，F(xiàn)WAF157RWFAF97-YP180M4，F(xiàn)WAF157RWFAF97-YP80M4，F(xiàn)WAF157RWFAF97-YP90S4，F(xiàn)WAF157RWFAF97-YPB100L4，F(xiàn)WAF157RWFAF97-YPB112M4，F(xiàn)WAF157RWFAF97-YPB132M4，F(xiàn)WAF157RWFAF97-YPB160M4，F(xiàn)WAF157RWFAF97-YPB180M4，F(xiàn)WAF157RWFAF97-YPB80M4，F(xiàn)WAF157RWFAF97-YPB90S4，F(xiàn)WAF157RWFAF97-YPE100L4，F(xiàn)WAF157RWFAF97-YPE112M4，F(xiàn)WAF157RWFAF97-YPE132M4，F(xiàn)WAF157RWFAF97-YPE160M4，F(xiàn)WAF157RWFAF97-YPE180M4，F(xiàn)WAF157RWFAF97-YPE80M4，F(xiàn)WAF157RWFAF97-YPE90S4，F(xiàn)WAF157RWFAF97-YS100L4，F(xiàn)WAF157RWFAF97-YS112M4，F(xiàn)WAF157RWFAF97-YS132M4，F(xiàn)WAF157RWFAF97-YS160M4，F(xiàn)WAF157RWFAF97-YS180M4，F(xiàn)WAF157RWFAF97-YS80M4，F(xiàn)WAF157RWFAF97-YS90S4，F(xiàn)WAF157RWFAF97-YVB100L4，F(xiàn)WAF157RWFAF97-YVB112M4，F(xiàn)WAF157RWFAF97-YVB132M4，F(xiàn)WAF157RWFAF97-YVB160M4，F(xiàn)WAF157RWFAF97-YVB180M4，F(xiàn)WAF157RWFAF97-YVB80M4，F(xiàn)WAF157RWFAF97-YVB90S4，F(xiàn)WAF157RWFAF97-YVP100L4，F(xiàn)WAF157RWFAF97-YVP112M4，F(xiàn)WAF157RWFAF97-YVP132M4，F(xiàn)WAF157RWFAF97-YVP160M4，F(xiàn)WAF157RWFAF97-YVP180M4，F(xiàn)WAF157RWFAF97-YVP80M4，F(xiàn)WAF157RWFAF97-YVP90S4，F(xiàn)WAF157RWFAF97-YVPEJ100L4，F(xiàn)WAF157RWFAF97-YVPEJ112M4，F(xiàn)WAF157RWFAF97-YVPEJ132M4，F(xiàn)WAF157RWFAF97-YVPEJ160M4，F(xiàn)WAF157RWFAF97-YVPEJ180M4，F(xiàn)WAF157RWFAF97-YVPEJ80M4，F(xiàn)WAF157RWFAF97-YVPEJ90S4，F(xiàn)AF159R99-Y0.55KW，F(xiàn)AF159R99-Y0.75KW，F(xiàn)AF159R99-Y1.1KW，F(xiàn)AF159R99-Y1.5KW，F(xiàn)AF159R99-Y100M4，F(xiàn)AF159R99-Y112M4，F(xiàn)AF159R99-Y11KW，F(xiàn)AF159R99-Y132M4，F(xiàn)AF159R99-Y15KW，F(xiàn)AF159R99-Y160M4，F(xiàn)AF159R99-Y18.5KW，F(xiàn)AF159R99-Y180M4，F(xiàn)AF159R99-Y2.2KW，F(xiàn)AF159R99-Y3KW，F(xiàn)AF159R99-Y4KW，F(xiàn)AF159R99-Y5.5KW，F(xiàn)AF159R99-Y80M4，F(xiàn)AF159R99-Y90M4，F(xiàn)AF159RF99-Y100M4，F(xiàn)AF159RF99-Y112M4，F(xiàn)AF159RF99-Y132M4，F(xiàn)AF159RF99-Y160M4，F(xiàn)AF159RF99-Y180M4，F(xiàn)AF159RF99-Y80M4，F(xiàn)AF159RF99-Y90M4，F(xiàn)AF159RF99-YB100L4，F(xiàn)AF159RF99-YB112M4，F(xiàn)AF159RF99-YB132M4，F(xiàn)AF159RF99-YB160M4，F(xiàn)AF159RF99-YB180M4，F(xiàn)AF159RF99-YB80M4，F(xiàn)AF159RF99-YB90S4，F(xiàn)AF159RF99-YDP100L4，F(xiàn)AF159RF99-YDP112M4，F(xiàn)AF159RF99-YDP132M4，F(xiàn)AF159RF99-YDP160M4，F(xiàn)AF159RF99-YDP180M4，F(xiàn)AF159RF99-YDP80M4，F(xiàn)AF159RF99-YDP90S4，F(xiàn)AF159RF99-YE100L4，F(xiàn)AF159RF99-YE112M4，F(xiàn)AF159RF99-YE132M4，F(xiàn)AF159RF99-YE160M4，F(xiàn)AF159RF99-YE180M4，F(xiàn)AF159RF99-YE80M4，F(xiàn)AF159RF99-YE90S4，F(xiàn)AF159RF99-YEJ100L4，F(xiàn)AF159RF99-YEJ112M4，F(xiàn)AF159RF99-YEJ132M4，F(xiàn)AF159RF99-YEJ160M4，F(xiàn)AF159RF99-YEJ180M4，F(xiàn)AF159RF99-YEJ80M4，F(xiàn)AF159RF99-YEJ90S4，F(xiàn)AF159RF99-YEJB100L4，F(xiàn)AF159RF99-YEJB112M4，F(xiàn)AF159RF99-YEJB132M4，F(xiàn)AF159RF99-YEJB160M4，F(xiàn)AF159RF99-YEJB180M4，F(xiàn)AF159RF99-YEJB80M4，F(xiàn)AF159RF99-YEJB90S4，F(xiàn)AF159RF99-YP100L4，F(xiàn)AF159RF99-YP112M4，F(xiàn)AF159RF99-YP132M4，F(xiàn)AF159RF99-YP160M4，F(xiàn)AF159RF99-YP180M4，F(xiàn)AF159RF99-YP80M4，F(xiàn)AF159RF99-YP90S4，F(xiàn)AF159RF99-YPB100L4，F(xiàn)AF159RF99-YPB112M4，F(xiàn)AF159RF99-YPB132M4，F(xiàn)AF159RF99-YPB160M4，F(xiàn)AF159RF99-YPB180M4，F(xiàn)AF159RF99-YPB80M4，F(xiàn)AF159RF99-YPB90S4，F(xiàn)AF159RF99-YPE100L4，F(xiàn)AF159RF99-YPE112M4，F(xiàn)AF159RF99-YPE132M4，F(xiàn)AF159RF99-YPE160M4，F(xiàn)AF159RF99-YPE180M4，F(xiàn)AF159RF99-YPE80M4，F(xiàn)AF159RF99-YPE90S4，F(xiàn)AF159RF99-YS100L4，F(xiàn)AF159RF99-YS112M4，F(xiàn)AF159RF99-YS132M4，F(xiàn)AF159RF99-YS160M4，F(xiàn)AF159RF99-YS180M4，F(xiàn)AF159RF99-YS80M4，F(xiàn)AF159RF99-YS90S4，F(xiàn)AF159RF99-YVB100L4，F(xiàn)AF159RF99-YVB112M4，F(xiàn)AF159RF99-YVB132M4，F(xiàn)AF159RF99-YVB160M4，F(xiàn)AF159RF99-YVB180M4，F(xiàn)AF159RF99-YVB80M4，F(xiàn)AF159RF99-YVB90S4，F(xiàn)AF159RF99-YVP100L4，F(xiàn)AF159RF99-YVP112M4，F(xiàn)AF159RF99-YVP132M4，F(xiàn)AF159RF99-YVP160M4，F(xiàn)AF159RF99-YVP180M4，F(xiàn)AF159RF99-YVP80M4，F(xiàn)AF159RF99-YVP90S4，F(xiàn)AF159RF99-YVPEJ100L4，F(xiàn)AF159RF99-YVPEJ112M4，F(xiàn)AF159RF99-YVPEJ132M4，F(xiàn)AF159RF99-YVPEJ160M4，F(xiàn)AF159RF99-YVPEJ180M4，F(xiàn)AF159RF99-YVPEJ80M4，F(xiàn)AF159RF99-YVPEJ90S4。

FAF159R99減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.csfzfl.com/product/list-fafxiliejiansuji-cn.html

推薦型號：F159減速機
